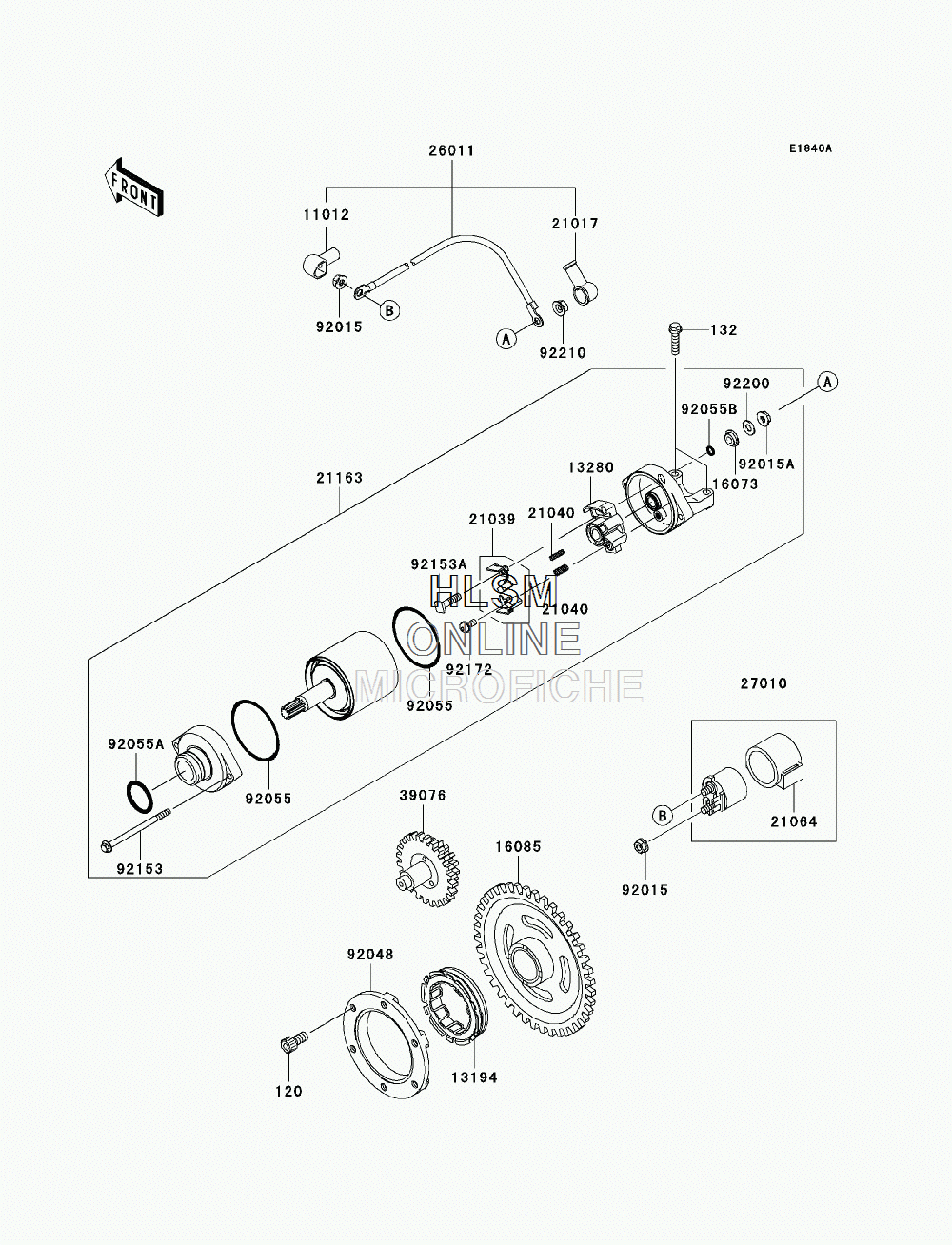

STARTER MOTOR для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120CA0816 BOLT-SOCKET,8X16BOLT-SOCKET,8X16
-
132132BD0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
1101211012-1354 CAP,TERMINALCAP,TERMINAL
-
1319413194-1094 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1328013280-0261 HOLDERHOLDER
-
1607316073-0053 INSULATORINSULATOR
-
1608516085-1346 GEAR,STARTERGEAR,STARTER
-
2101721017-017 GROMMET,STARTER TERMINALGROMMET,STARTER TERMINAL
-
2103921039-0005 BRUSH,CARBON SETBRUSH,CARBON SET
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2106421064-002 DAMPER,MAGNETIC SWITCHDAMPER,MAGNETIC SWITCH
-
2116321163-0047 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-0111 WIRE-LEAD,STARTER CABLEWIRE-LEAD,STARTER CABLE
-
2701027010-1098 SWITCH,MAGNETICSWITCH,MAGNETIC
-
3907639076-1066 LIMITER,STARTERLIMITER,STARTER
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1476 NUT,STARTER MOTORNUT,STARTER MOTOR
-
9204892048-0002 RACE,ONE WAY CLUTCHRACE,ONE WAY CLUTCH
-
9205592055-0136 RING-ORING-O
-
92055A92055-1276 RING-ORING-O
-
92055B92055-1370 RING-O,4.5X2.0RING-O,4.5X2.0
-
9215392153-1851 BOLT,SETBOLT,SET
-
92153A92153-1866 BOLTBOLT
-
9217292172-0334 SCREWSCREW
-
9220092200-0386 WASHERWASHER
-
9221092210-0188 NUT,6MMNUT,6MM
