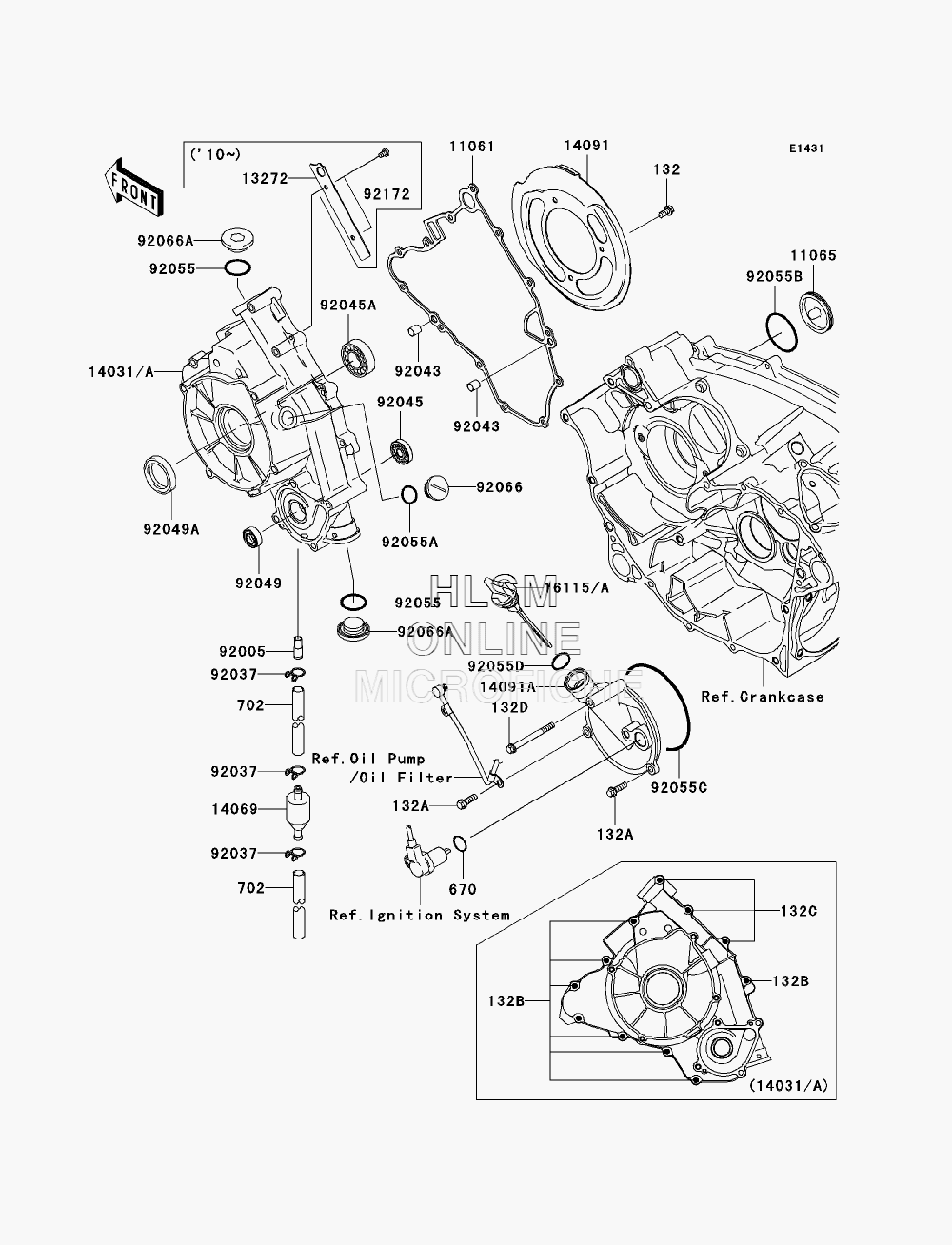

ENGINE COVER(S) для Kawasaki BRUTE FORCE 750 4X4I (KVF750FBF) - 2011 года выпуска
-
№АртикулНазвание
-
132132BD0612 BOLT - FLANGED - SMALL, 6X12BOLT - FLANGED - SMALL, 6X12
-
132A132BD0620 BOLT - FLANGED - SMALL, 6X20BOLT - FLANGED - SMALL, 6X20
-
132B132BD0630 BOLT - FLANGED - SMALL, 6X30BOLT - FLANGED - SMALL, 6X30
-
132C132BD0655 BOLT - FLANGED - SMALL, 6X55BOLT - FLANGED - SMALL, 6X55
-
132D132BD0665 BOLT - FLANGED - SMALL, 6X65BOLT - FLANGED - SMALL, 6X65
-
670670D2018 O-RINGO-RING
-
702702A07035 TUBE - RUBBER, 7X10X35TUBE - RUBBER, 7X10X35
-
1106111061-1119 GASKETGASKET
-
1106511065-1151 CAPCAP
-
1327213272-0707 PLATEPLATE
-
14031A14031-0112 COVER - GENERATORCOVER - GENERATOR
-
1406914069-1051 BREATHERBREATHER
-
1409114091-0309 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
14091A14091-1365 COVERCOVER
-
1611516115-0023 CAP - OIL FILLERCAP - OIL FILLER
-
9200592005-1369 FITTINGFITTING
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-0084 BEARING - BALL, 6901BEARING - BALL, 6901
-
92045A92045-0086 BEARING - BALL, TMB004JR2CMBEARING - BALL, TMB004JR2CM
-
9204992049-1228 SEAL - OIL, SC 12X22X5SEAL - OIL, SC 12X22X5
-
92049A92049-1576 SEAL - OIL, HTC 28X45X7SEAL - OIL, HTC 28X45X7
-
9205592055-1136 O-RING, 25.7X2.4O-RING, 25.7X2.4
-
92055A92055-1146 O-RING, 20X2O-RING, 20X2
-
92055B92055-1279 O-RING, 44.7X2.4O-RING, 44.7X2.4
-
92055C92055-1632 O-RING, 99.5X2.0O-RING, 99.5X2.0
-
92055D92055-2185 O-RING, 20X3O-RING, 20X3
-
9206692066-0011 PLUG, COVERPLUG, COVER
-
92066A92066-0012 PLUG, 25X8PLUG, 25X8
-
9217292172-0119 SCREW, 5X8SCREW, 5X8
