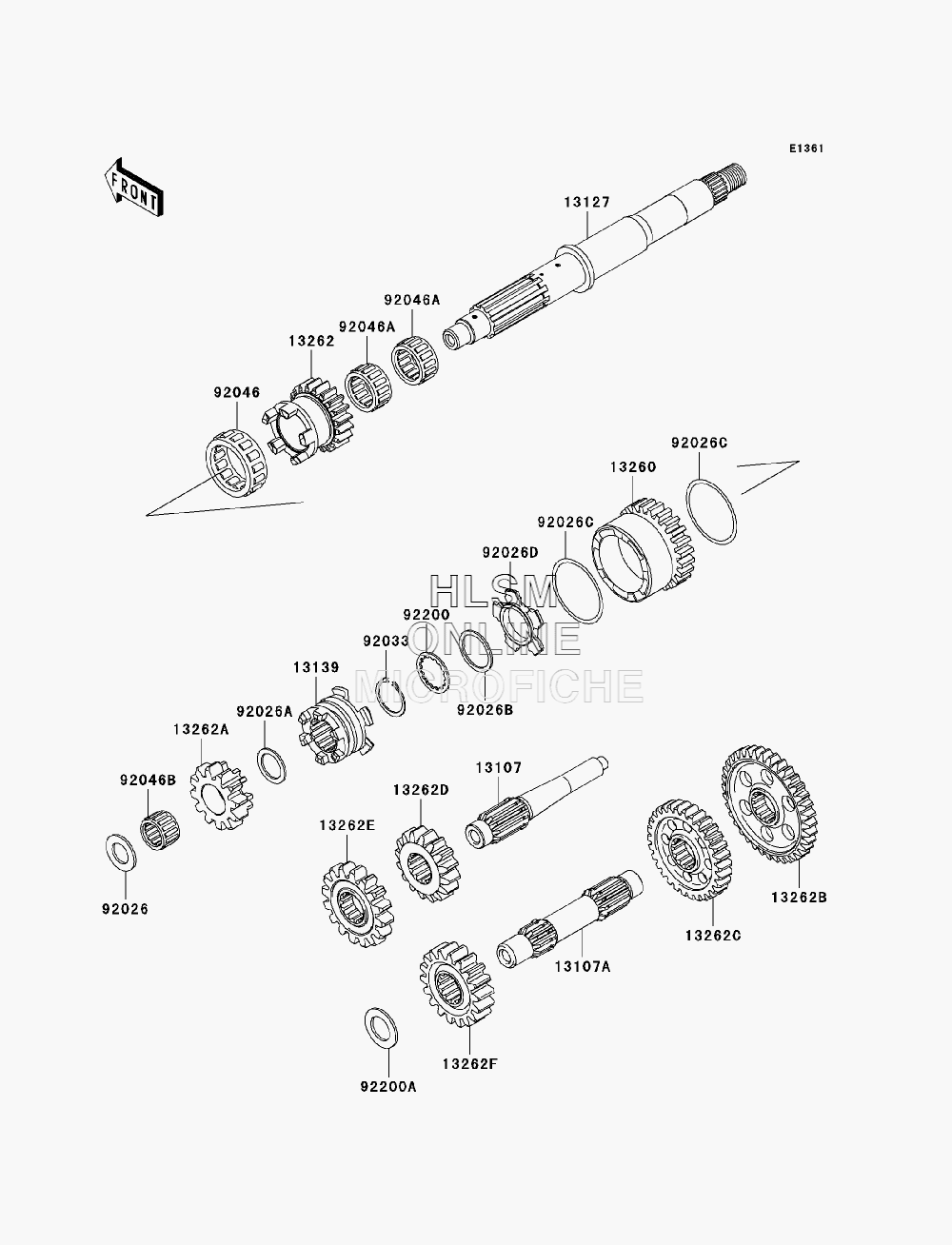

TRANSMISSION для Kawasaki BRUTE FORCE 750 4X4I (KVF750FBF) - 2011 года выпуска
-
№АртикулНазвание
-
1310713107-0158 SHAFT, REVERSE, IDLESHAFT, REVERSE, IDLE
-
13107A13107-0177 SHAFT, COUNTERSHAFT, COUNTER
-
1312713127-0053 SHAFT - TRANSMISSION INPUTSHAFT - TRANSMISSION INPUT
-
1313913139-0003 SHIFTERSHIFTER
-
1326013260-1867 GEAR, INPUT HIGH, 26TGEAR, INPUT HIGH, 26T
-
1326213262-0234 GEAR, INPUT LOW, 20TGEAR, INPUT LOW, 20T
-
13262A13262-0235 GEAR, INPUT REVERSE, 12TGEAR, INPUT REVERSE, 12T
-
13262B13262-0313 GEAR, DRIVEN LOW, 36TGEAR, DRIVEN LOW, 36T
-
13262C13262-0314 GEAR, DRIVEN HI, 30TGEAR, DRIVEN HI, 30T
-
13262D13262-0433 GEAR, OUTPUT REVERSE, 16TGEAR, OUTPUT REVERSE, 16T
-
13262E13262-0434 GEAR, DRIVEN REVERSE, 16TGEAR, DRIVEN REVERSE, 16T
-
13262F13262-0491 GEAR, OUTPUT DRIVE, 18TGEAR, OUTPUT DRIVE, 18T
-
9202692026-1415 SPACER, 17.3X30X2.0SPACER, 17.3X30X2.0
-
92026A92026-1568 SPACER, 21.2X29X1.6SPACER, 21.2X29X1.6
-
92026B92026-1587 SPACER, 28.2X34.5X1.6SPACER, 28.2X34.5X1.6
-
92026C92026-1599 SPACER, 48.2X54.3X1.0SPACER, 48.2X54.3X1.0
-
92026D92026-1600 SPACER, HI & LOWSPACER, HI & LOW
-
9203392033-1037 RING - SNAP, 25.9X30.6X1.2RING - SNAP, 25.9X30.6X1.2
-
9204692046-1276 BEARING - NEEDLE, HIGH GEARBEARING - NEEDLE, HIGH GEAR
-
92046A92046-1278 BEARING - NEEDLE, FWF - 283317BEARING - NEEDLE, FWF - 283317
-
92046B92046-1279 BEARING - NEEDLE, REVERSE GEARBEARING - NEEDLE, REVERSE GEAR
-
9220092200-1240 WASHER, 28.5X34.0X1.5WASHER, 28.5X34.0X1.5
-
92200A92200-1351 WASHER, 20.3X33X2.0WASHER, 20.3X33X2.0
