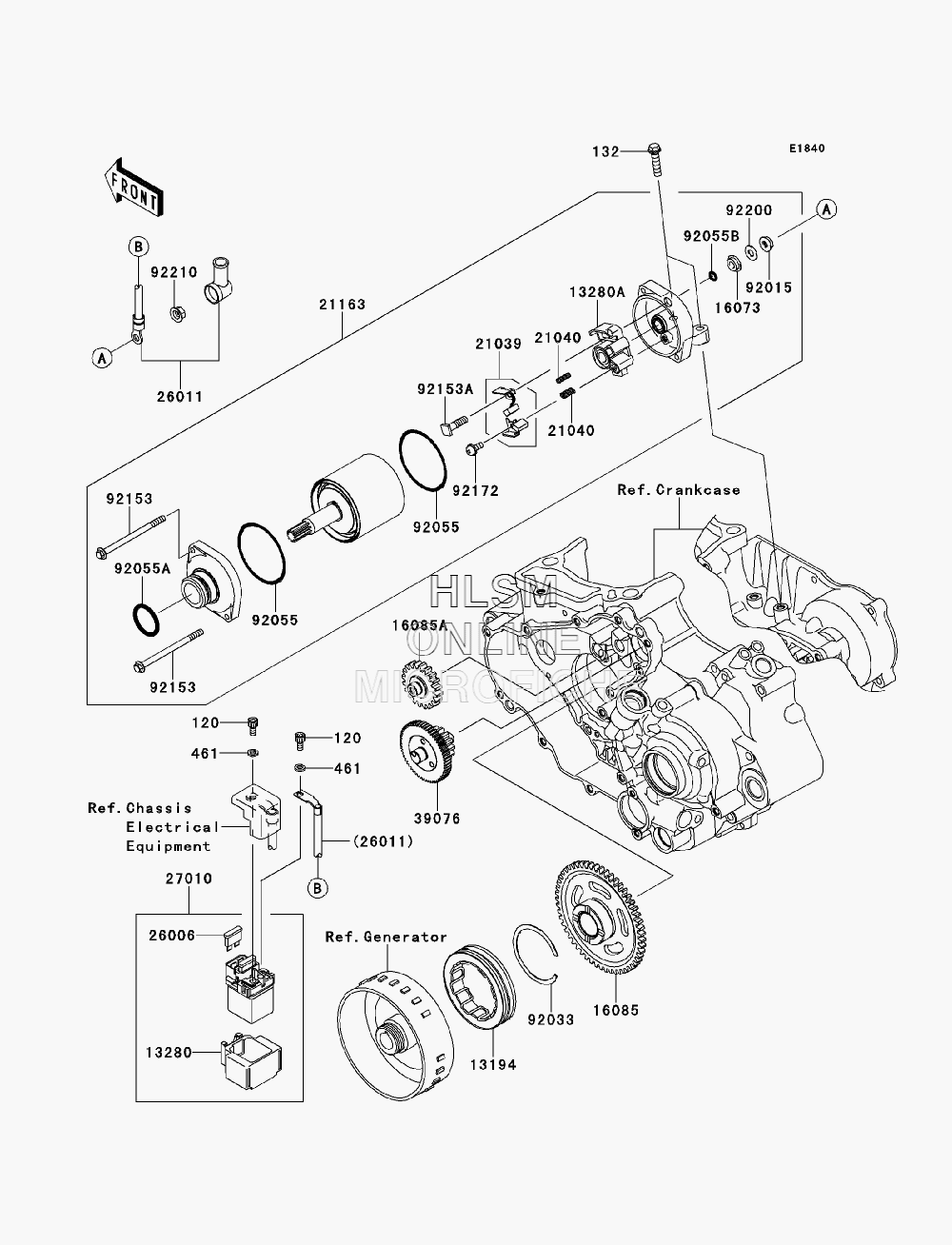

STARTER MOTOR для Kawasaki KFX450R (KSF450BBF) - 2011 года выпуска
-
№АртикулНазвание
-
120120CB0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
132132BD0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
461461DB0500 WASHER-SPRING, 5MM, (BLACK)WASHER-SPRING, 5MM, (BLACK)
-
1319413194-0008 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1328013280-0109 HOLDER, SWITCHHOLDER, SWITCH
-
13280A13280-0261 HOLDERHOLDER
-
1607316073-0053 INSULATORINSULATOR
-
1608516085-0092 GEAR, 53TGEAR, 53T
-
16085A16085-0093 GEAR, 20TGEAR, 20T
-
2103921039-0005 BRUSH, CARBON SETBRUSH, CARBON SET
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0033 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE, BLADE, 30A, (GREEN)FUSE, BLADE, 30A, (GREEN)
-
2601126011-0103 WIRE-LEADWIRE-LEAD
-
2701027010-0030 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-0015 LIMITER, 58T & 13TLIMITER, 58T & 13T
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9203392033-3731 RING-SNAPRING-SNAP
-
9205592055-0136 RING-ORING-O
-
92055A92055-1276 RING-ORING-O
-
92055B92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
9215392153-1851 BOLT, SETBOLT, SET
-
92153A92153-1866 BOLTBOLT
-
9217292172-0334 SCREWSCREW
-
9220092200-0386 WASHERWASHER
-
9221092210-0188 NUT, 6MMNUT, 6MM
