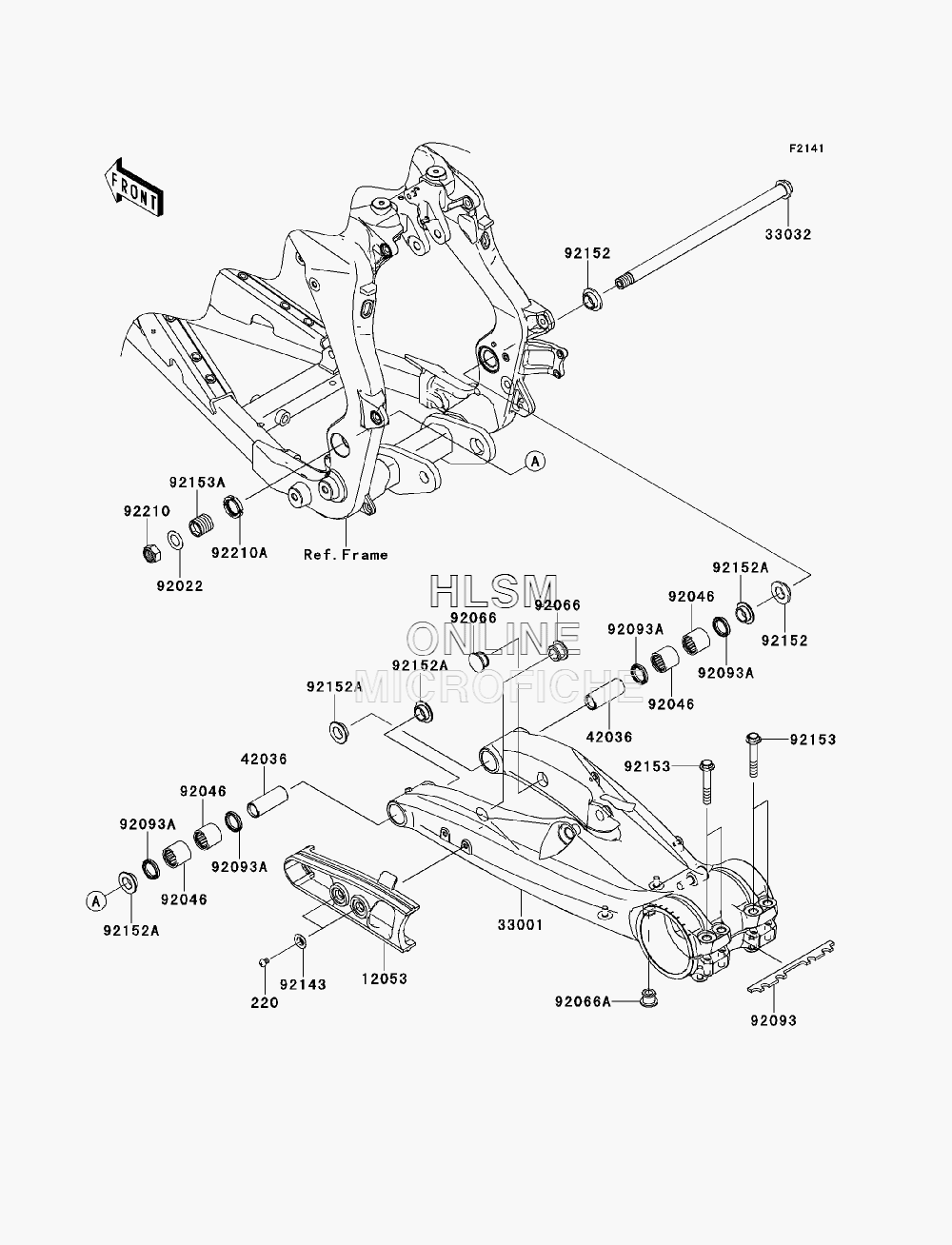

SUSPENSION - SWINGARM для Kawasaki KFX450R (KSF450BBF) - 2011 года выпуска
-
№АртикулНазвание
-
220220AA0608 SCREW-PAN-CROS, 6X8SCREW-PAN-CROS, 6X8
-
1205312053-0100 GUIDE-CHAINGUIDE-CHAIN
-
3300133001-0157 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-0019 SHAFT-SWING ARMSHAFT-SWING ARM
-
4203642036-0036 SLEEVESLEEVE
-
9202292022-170 WASHER, THRUST, 16.5X28X1WASHER, THRUST, 16.5X28X1
-
9204692046-0027 BEARING-NEEDLE, BM222925BEARING-NEEDLE, BM222925
-
9206692066-0074 PLUGPLUG
-
92066A92066-0077 PLUGPLUG
-
9209392093-0062 SEALSEAL
-
92093A92093-1435 SEAL, SDO22X29X5SEAL, SDO22X29X5
-
9214392143-1156 COLLARCOLLAR
-
9215292152-0402 COLLARCOLLAR
-
92152A92152-0431 COLLARCOLLAR
-
9215392153-1486 BOLT, FLANGED, 10X60BOLT, FLANGED, 10X60
-
92153A92153-1600 BOLT, PIVOT, 24MMBOLT, PIVOT, 24MM
-
9221092210-0179 NUT, LOCK, 16MMNUT, LOCK, 16MM
-
92210A92210-0294 NUT, PIVOT, 24MMNUT, PIVOT, 24MM
