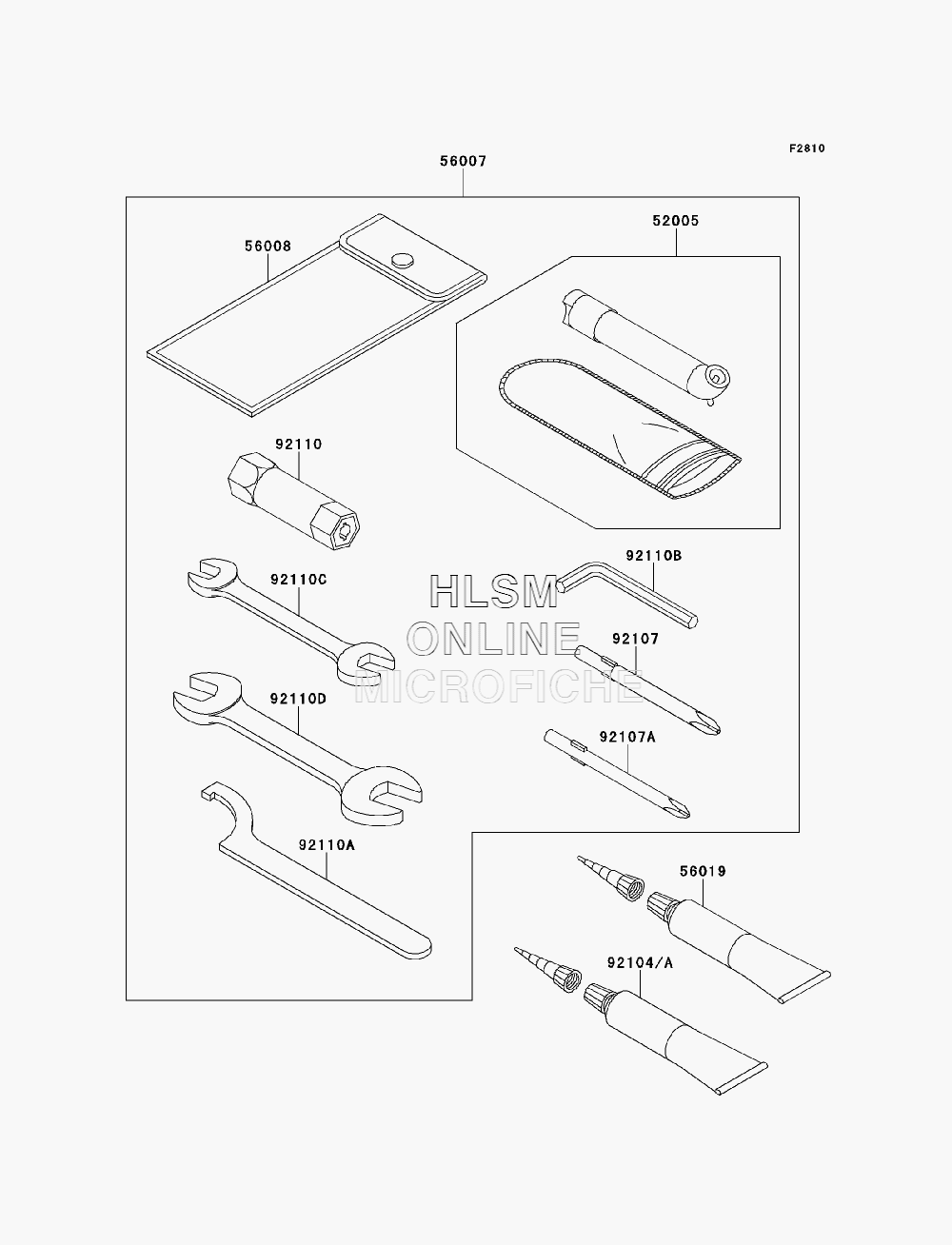

OWNER'S TOOLS для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750HCF) - 2012 года выпуска
-
№АртикулНазвание
-
5200552005-1082 GAUGE, AIRGAUGE, AIR
-
5600756007-0014 TOOL-KITTOOL-KIT
-
5600856008-1007 BAG, TOOLBAG, TOOL
-
5601956019-120 GASKET-LIQUID, TB1211, (WHITE)GASKET-LIQUID, TB1211, (WHITE)
-
9210492104-0004 GASKET-LIQUID, TB1211F, (CLEAR)GASKET-LIQUID, TB1211F, (CLEAR)
-
92104A92104-1063 GASKET-LIQUID, TB1216, (GRAY)GASKET-LIQUID, TB1216, (GRAY)
-
9210792107-005 TOOL-DRIVER, #3 PHILLIPSTOOL-DRIVER, #3 PHILLIPS
-
92107A92107-1053 TOOL-DRIVER, #2 PHILLIPSTOOL-DRIVER, #2 PHILLIPS
-
9211092110-1116 TOOL-WRENCH, BOX, 16MMTOOL-WRENCH, BOX, 16MM
-
92110A92110-1129 TOOL-WRENCH, HOOKTOOL-WRENCH, HOOK
-
92110B92110-1140 TOOL-WRENCH, ALLEN, 3MMTOOL-WRENCH, ALLEN, 3MM
-
92110C92110-1152 TOOL-WRENCH, OPEN END, 10X12TOOL-WRENCH, OPEN END, 10X12
-
92110D92110-1153 TOOL-WRENCH, OPEN END, 14X17TOOL-WRENCH, OPEN END, 14X17
