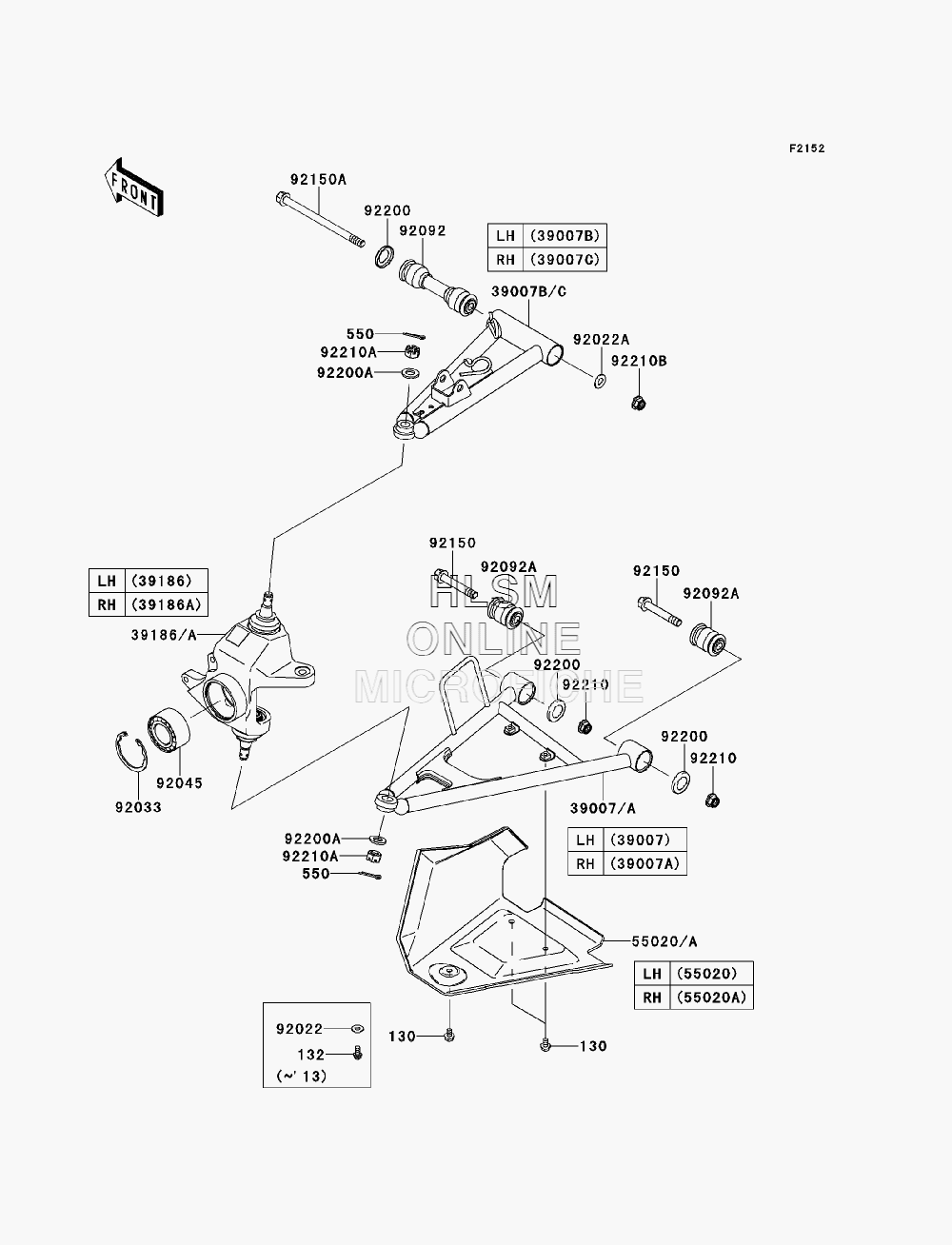

SUSPENSION - FRONT для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750HCF) - 2012 года выпуска
-
№АртикулНазвание
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
3900739007-0176 ARM-SUSP, FRONT, LOWER, LEFT HANDARM-SUSP, FRONT, LOWER, LEFT HAND
-
39007A39007-0177 ARM-SUSP, FRONT, LOWER, RIGHT HANDARM-SUSP, FRONT, LOWER, RIGHT HAND
-
39007B39007-0341 ARM-SUSP, FRONT, UPPER, LEFT HANDARM-SUSP, FRONT, UPPER, LEFT HAND
-
39007C39007-0342 ARM-SUSP, FRONT, UPPER, RIGHT HANDARM-SUSP, FRONT, UPPER, RIGHT HAND
-
3918639186-0033 KNUCKLE ASSY, FRONT, LEFT HANDKNUCKLE ASSY, FRONT, LEFT HAND
-
39186A39186-0034 KNUCKLE ASSY, FRONT, RIGHT HANDKNUCKLE ASSY, FRONT, RIGHT HAND
-
5502055020-0109-6Z GUARD, FRONT ARM, LEFT HAND, (F.BLACK)GUARD, FRONT ARM, LEFT HAND, (F.BLACK)
-
55020A55020-0110-6Z GUARD, FRONT ARM, RIGHT HAND, (F.BLACK)GUARD, FRONT ARM, RIGHT HAND, (F.BLACK)
-
9202292022-024 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
92022A92022-3742 WASHER, 10.2X20X1.5WASHER, 10.2X20X1.5
-
9203392033-1274 RING-SNAP, 55MMRING-SNAP, 55MM
-
9204592045-0095 BEARING-BALL, 30BWD08ACA13BEARING-BALL, 30BWD08ACA13
-
9209292092-0025 BUSHING-RUBBERBUSHING-RUBBER
-
92092A92092-0026 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1384 BOLT, FLANGED, 10X63BOLT, FLANGED, 10X63
-
92150A92150-1686 BOLT, FLANGED, 10X150BOLT, FLANGED, 10X150
-
9220092200-0582 WASHER, 19X31.8X4WASHER, 19X31.8X4
-
92200A92200-1004 WASHER, 12.3X23X2.3WASHER, 12.3X23X2.3
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0395 NUT, CASTLE, 12MMNUT, CASTLE, 12MM
-
92210B92210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
