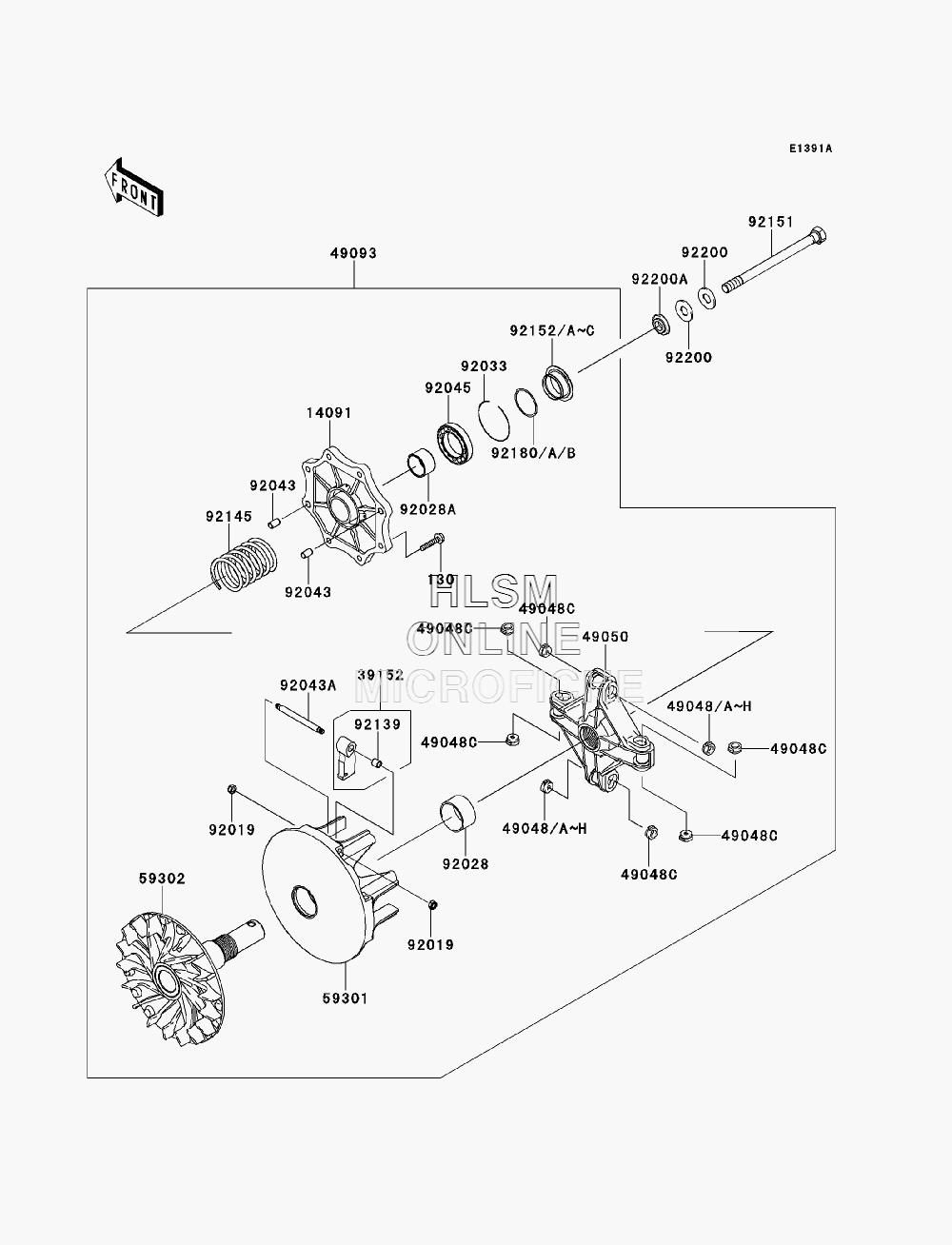

DRIVE CONVERTER (VF750DE082074 AND UP) для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750JCS) - 2012 года выпуска
-
№АртикулНазвание
-
130130CA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1409114091-1804 COVERCOVER
-
3915239152-0034 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1087 SHOE, T=7.2SHOE, T=7.2
-
49048A49048-1088 SHOE, T=7.3SHOE, T=7.3
-
49048B49048-1089 SHOE, T=7.4SHOE, T=7.4
-
49048C49048-1090 SHOE, T=7.5SHOE, T=7.5
-
49048D49048-1091 SHOE, T=7.6SHOE, T=7.6
-
49048E49048-1092 SHOE, T=7.7SHOE, T=7.7
-
49048F49048-1093 SHOE, T=7.8SHOE, T=7.8
-
49048G49048-1094 SHOE, T=7.9SHOE, T=7.9
-
49048H49048-1095 SHOE, T=8.0SHOE, T=8.0
-
4905049050-0010 SPIDERSPIDER
-
4909349093-0040 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
5930159301-0007 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-0078 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202892028-1975 BUSHINGBUSHING
-
92028A92028-1980 BUSHINGBUSHING
-
9203392033-0063 RING-SNAPRING-SNAP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1688 PINPIN
-
9204592045-1453 BEARING-BALL, 6907DDG8C4 S6NSBEARING-BALL, 6907DDG8C4 S6NS
-
9213992139-0215 BUSHINGBUSHING
-
9214592145-0794 SPRINGSPRING
-
9215192151-1393 BOLT, 12X165BOLT, 12X165
-
9215292152-1436 COLLAR, T=1.6COLLAR, T=1.6
-
92152A92152-1437 COLLAR, T=3.0COLLAR, T=3.0
-
92152B92152-1438 COLLAR, T=2.3COLLAR, T=2.3
-
92152C92152-1440 COLLAR, T=3.7COLLAR, T=3.7
-
9218092180-1378 SHIM, 35X40X0.10SHIM, 35X40X0.10
-
92180A92180-1379 SHIM, 35X40X0.20SHIM, 35X40X0.20
-
92180B92180-1380 SHIM, 35X40X0.30SHIM, 35X40X0.30
-
9220092200-1504 WASHER, SPRINGWASHER, SPRING
-
92200A92200-1634 WASHERWASHER
