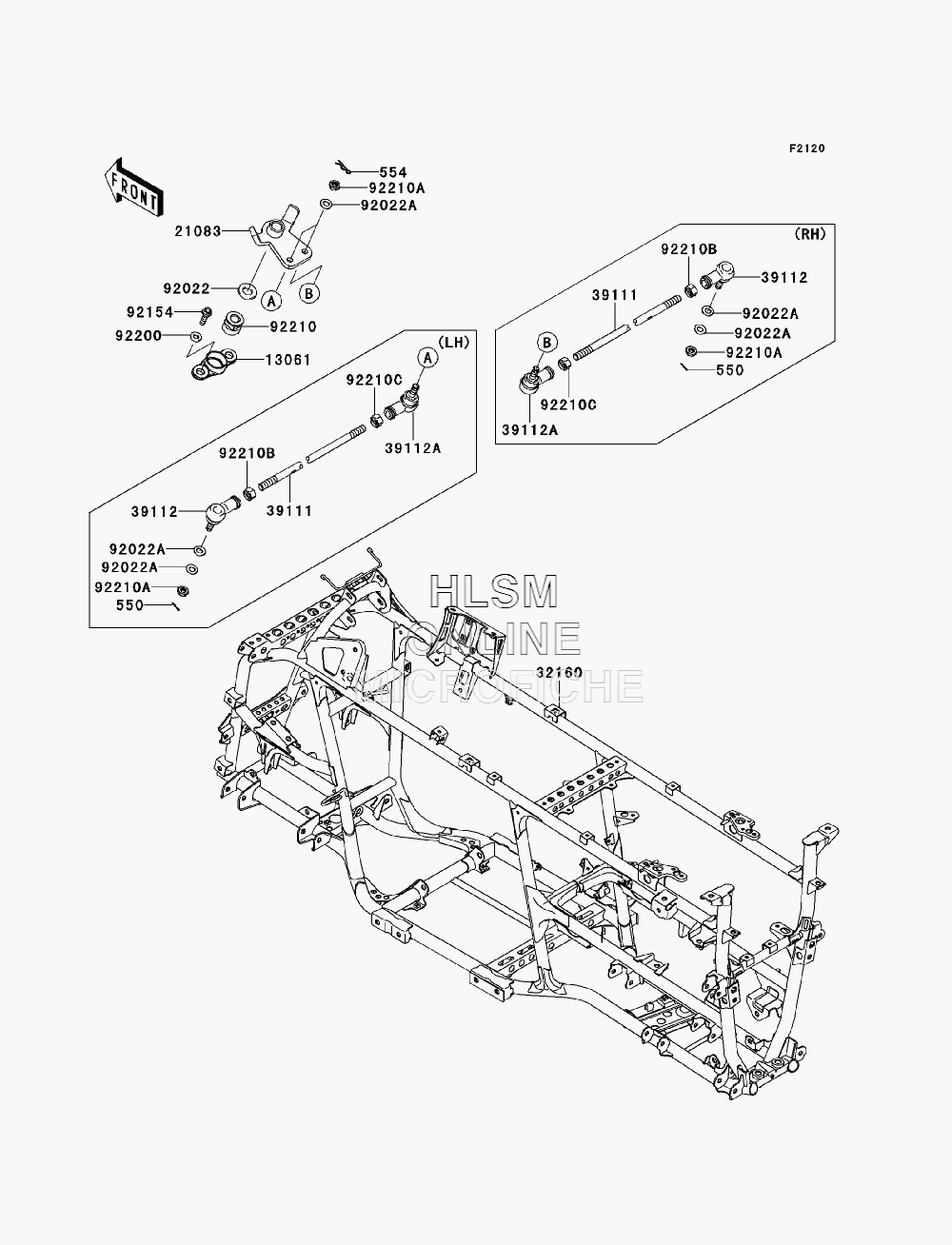

FRAME для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750JCS) - 2012 года выпуска
-
№АртикулНазвание
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
554554DA1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
1306113061-0611 BOSS, EPS STOPPERBOSS, EPS STOPPER
-
2108321083-0053 ARM, PITMANARM, PITMAN
-
3216032160-0528 FRAME-COMPFRAME-COMP
-
3911139111-0023 ROD-TIEROD-TIE
-
3911239112-0009 RODEND-TIE, RIGHT HANDEDRODEND-TIE, RIGHT HANDED
-
39112A39112-0010 RODEND-TIE, LEFT HANDEDRODEND-TIE, LEFT HANDED
-
9202292022-1701 WASHER, 16X32X3.2WASHER, 16X32X3.2
-
92022A92022-3742 WASHER, 10.2X20X1.5WASHER, 10.2X20X1.5
-
9215492154-0850 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9220092200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
-
9221092210-0751 NUT, 16MMNUT, 16MM
-
92210A92210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92210B92210-1385 NUT, RIGHT HANDEDNUT, RIGHT HANDED
-
92210C92210-1386 NUT, LEFT HANDEDNUT, LEFT HANDED
