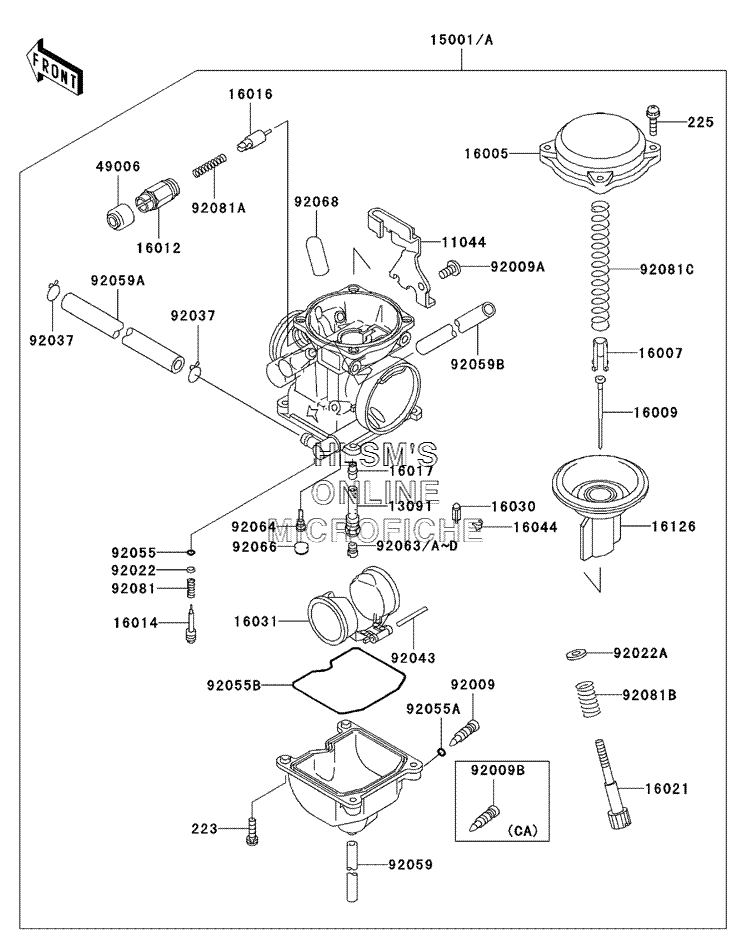

CARBURETOR для Kawasaki KLR250 - 2000 года выпуска
-
№АртикулНазвание
-
1104411044-1061 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1309113091-1259 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1500115001-1121 CARBURETOR, ASSY (US ONLY)CARBURETOR, ASSY (US ONLY)
-
15001A15001-1122 CARBURETOR, ASSY (CALIF. ONLY)CARBURETOR, ASSY (CALIF. ONLY)
-
1600516005-1057 TOP, CHAMBER, MIXING, 27/60TOP, CHAMBER, MIXING, 27/60
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1600916009-1255 NEEDLE, JET, N31CNEEDLE, JET, N31C
-
1601216012-1055 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
1601416014-1029 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1065 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1265 JET, NEEDLEJET, NEEDLE
-
1602116021-1109 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603016030-1007 VALVE, FLOATVALVE, FLOAT
-
1603116031-1056 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1163 VALVE, VACUUMVALVE, VACUUM
-
4900649006-1165 BOOT, STARTER PLUNGERBOOT, STARTER PLUNGER
-
9200992009-1095 SCREW, DRAIN, M6X1.0SCREW, DRAIN, M6X1.0
-
92009A92009-1365 SCREW, 5X10SCREW, 5X10
-
92009B92009-1551 SCREW, DRAIN, M6X0.75 (CALIF. ONLY)SCREW, DRAIN, M6X0.75 (CALIF. ONLY)
-
9202292022-1003 WASHER, PLAINWASHER, PLAIN
-
92022A92022-1587 WASHER, THROTTLE STOP SCREWWASHER, THROTTLE STOP SCREW
-
9203792037-1531 CLAMP, TUBECLAMP, TUBE
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1002 O-RING, PILOT ADJUSTO-RING, PILOT ADJUST
-
92055A92055-1053 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
92055B92055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9205992059-111 TUBE, 3.5X6.5X330TUBE, 3.5X6.5X330
-
92059A92059-1538 TUBE, 6.5X11.5X200TUBE, 6.5X11.5X200
-
92059B92059-1539 TUBE, 6.5X9.5X410TUBE, 6.5X9.5X410
-
9206392063-1071 JET, MAIN, #118JET, MAIN, #118
-
92063A92063-1072 JET, MAIN, #120 (OFF ROAD USE ONLY)JET, MAIN, #120 (OFF ROAD USE ONLY)
-
92063B92063-1073 JET, MAIN, #122 (OFF ROAD USE ONLY)JET, MAIN, #122 (OFF ROAD USE ONLY)
-
92063C92063-1117 JET, MAIN, #112 (OFF ROAD USE ONLY)JET, MAIN, #112 (OFF ROAD USE ONLY)
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
92063D92063-1118 JET, MAIN, #115 (OFF ROAD USE ONLY)JET, MAIN, #115 (OFF ROAD USE ONLY)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9206892068-006 PLUG, 12X25 (US ONLY)PLUG, 12X25 (US ONLY)
-
9208192081-1002 SPRING, PILOT ADJUST SCREWSPRING, PILOT ADJUST SCREW
-
92081A92081-1720 SPRING, PLUNGERSPRING, PLUNGER
-
92081B92081-1721 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
92081C92081-1826 SPRING, VACUUM VALVESPRING, VACUUM VALVE
