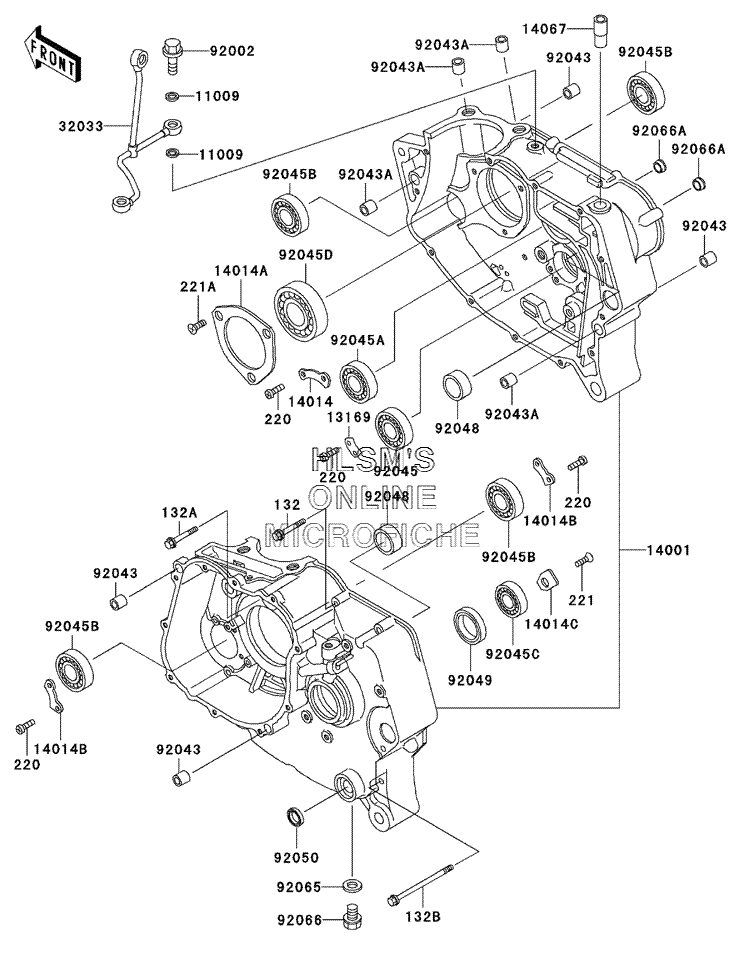

CRANKCASE для Kawasaki KLR250 - 2000 года выпуска
-
№АртикулНазвание
-
132132J0640 BOLT, FLANGED, SMALL, 6X40BOLT, FLANGED, SMALL, 6X40
-
132A132J0650 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0670 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
221221B0612 SCREW, CSK, CROS, 6X12SCREW, CSK, CROS, 6X12
-
221A221B0616 SCREW, CSK, CROS, 6X16SCREW, CSK, CROS, 6X16
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
1316913169-014 PLATE, GEAR CHANGE DRUMPLATE, GEAR CHANGE DRUM
-
1400114001-5180 SET, CRANKCASESET, CRANKCASE
-
1401414014-037 PLATE, POSITION, CHANGE DRUMPLATE, POSITION, CHANGE DRUM
-
14014A14014-1004 PLATE, POSITION, CRANK BEARINGPLATE, POSITION, CRANK BEARING
-
14014B14014-1014 PLATE, POSITIONPLATE, POSITION
-
14014C14014-1057 PLATE, POSITIONPLATE, POSITION
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
3203332033-1427 PIPEPIPE
-
9200292002-1170 BOLT, BANJO, 10X25BOLT, BANJO, 10X25
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9204592045-036 BEARING, BALL, #6905BEARING, BALL, #6905
-
92045A92045-1041 BEARING, BALL, TMB204 JRBEARING, BALL, TMB204 JR
-
92045B92045-1118 BEARING, BALL, 6004TMBBEARING, BALL, 6004TMB
-
92045C92045-1127 BEARING, BALL, TM, SX0597LUBEARING, BALL, TM, SX0597LU
-
92045D92045-1172 BEARING, BALLBEARING, BALL
-
9204892048-1057 RACE, 26X33X13RACE, 26X33X13
-
9204992049-1159 SEAL, OIL, TC32457SEAL, OIL, TC32457
-
9205092050-082 SEAL, OILSEAL, OIL
-
9206592065-097 GASKET, 12X22X2, DRAIN PLUGGASKET, 12X22X2, DRAIN PLUG
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
92066A92066-1282 PLUGPLUG
