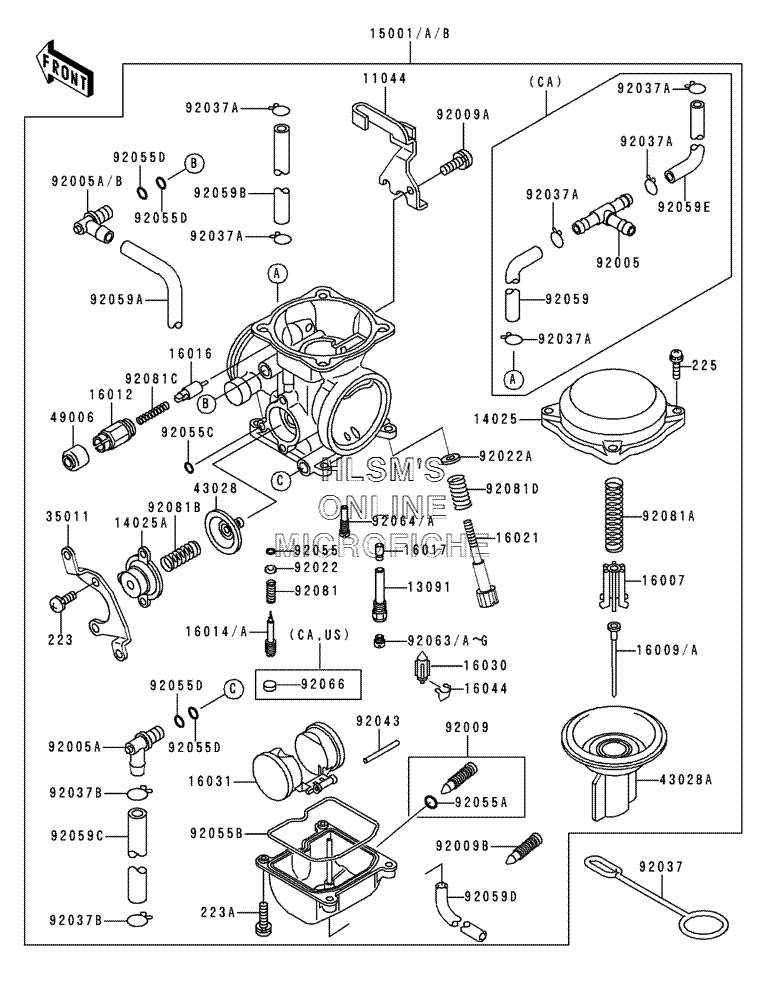

CARBURETOR для Kawasaki KLR650 - 2000 года выпуска
-
№АртикулНазвание
-
1104411044-1353 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1309113091-1425 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1402514025-1890 COVER, MIXING CHAMBERCOVER, MIXING CHAMBER
-
14025A14025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500115001-1327 CARBURETOR, ASSY (EXCEPT CALIF.)CARBURETOR, ASSY (EXCEPT CALIF.)
-
15001A15001-1368 CARBURETOR, ASSY (CALIF. ONLY)CARBURETOR, ASSY (CALIF. ONLY)
-
1600716007-1113 SEAT, SPRING, DIAPHRAGM VALVESEAT, SPRING, DIAPHRAGM VALVE
-
1600916009-1344 NEEDLE, JET, N31RNEEDLE, JET, N31R
-
1601216012-1055 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
1601416014-1053 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1057 PLUNGERPLUNGER
-
1601716017-1254 JET, NEEDLEJET, NEEDLE
-
1602116021-1109 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1056 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
3501135011-1232 STAY, AIR CUT VALVESTAY, AIR CUT VALVE
-
4302843028-1053 DIAPHRAGM, AIR CUT VALVEDIAPHRAGM, AIR CUT VALVE
-
43028A43028-1062 DIAPHRAGM, VALVEDIAPHRAGM, VALVE
-
4900649006-1165 BOOT, STARTER PLUNGERBOOT, STARTER PLUNGER
-
9200592005-1112 FITTING, FUEL, T, TYPE (CALIF. ONLY)FITTING, FUEL, T, TYPE (CALIF. ONLY)
-
92005A92005-1120 FITTING, L, TYPEFITTING, L, TYPE
-
92005B92005-1144 FITTING, L, TYPEFITTING, L, TYPE
-
9200992009-1095 SCREW, DRAIN, M6X1.0SCREW, DRAIN, M6X1.0
-
92009A92009-1365 SCREW, 5X10SCREW, 5X10
-
92009B92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9202292022-1003 WASHER, PLAINWASHER, PLAIN
-
92022A92022-1587 WASHER, THROTTLE STOP SCREWWASHER, THROTTLE STOP SCREW
-
9203792037-134 CLAMP, OVERFLOW TUBECLAMP, OVERFLOW TUBE
-
92037A92037-1477 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037A92037-1477 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037B92037-1531 CLAMP, TUBECLAMP, TUBE
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1002 O-RING, PILOT ADJUSTO-RING, PILOT ADJUST
-
92055A92055-1053 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
92055B92055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
92055C92055-1245 O-RINGO-RING
-
92055D92055-1246 O-RINGO-RING
-
9205992059-1713 TUBE, 5X9X120 (CALIF. ONLY)TUBE, 5X9X120 (CALIF. ONLY)
-
92059A92059-1727 TUBE, 6.5X9.5X430TUBE, 6.5X9.5X430
-
92059B92059-1836 TUBE, 5X9X220 (EXCEPT CALIF.)TUBE, 5X9X220 (EXCEPT CALIF.)
-
92059C92059-1837 TUBE, 6.5X11.5X170TUBE, 6.5X11.5X170
-
92059E92059-1839 TUBE, 5X9X100 (CALIF. ONLY)TUBE, 5X9X100 (CALIF. ONLY)
-
92063A92063-1016 JET, MAIN, #142 (OFF ROAD USE ONLY)JET, MAIN, #142 (OFF ROAD USE ONLY)
-
92063C92063-1017 JET, MAIN, #145JET, MAIN, #145
-
92063D92063-1324 JET, MAIN, #148JET, MAIN, #148
-
92063F92063-1330 JET, MAIN, #150 (OFF ROAD USE ONLY)JET, MAIN, #150 (OFF ROAD USE ONLY)
-
92063G92063-1331 JET, MAIN, #152JET, MAIN, #152
-
9206492064-1050 JET, PILOT, #38JET, PILOT, #38
-
223223C0410 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
92064A92064-1108 JET, PILOT, #40JET, PILOT, #40
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1002 SPRING, PILOT ADJUST SCREWSPRING, PILOT ADJUST SCREW
-
92081A92081-1718 SPRING, DIAPHRAGM VALVESPRING, DIAPHRAGM VALVE
-
92081B92081-1719 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
92081C92081-1720 SPRING, PLUNGERSPRING, PLUNGER
-
92081D92081-1721 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
