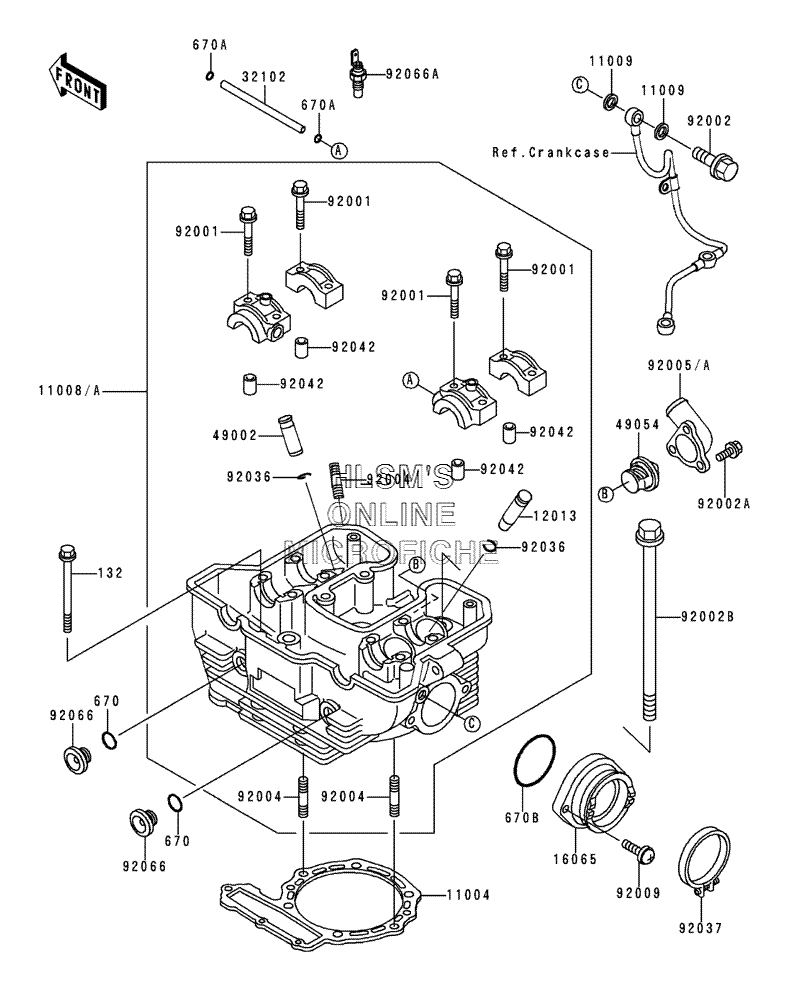

CYLINDER HEAD для Kawasaki KLR650 - 2000 года выпуска
-
№АртикулНазвание
-
132132H0685 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670B2015 O-RING, 15MMO-RING, 15MM
-
670A670D1506 O-RING, 6MMO-RING, 6MM
-
670B670D3048 O-RING, 48MMO-RING, 48MM
-
1100411004-1158 GASKET, HEADGASKET, HEAD
-
11008A11008-1297 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
1201312013-009 GUIDE, VALVE, INTAKEGUIDE, VALVE, INTAKE
-
1606516065-1151 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3210232102-1352 PIPE, OIL LINEPIPE, OIL LINE
-
4900249002-1002 GUIDE, VALVE, EXHAUSTGUIDE, VALVE, EXHAUST
-
4905449054-1053 THERMOSTATTHERMOSTAT
-
9200192001-1105 BOLT, FLANGED, 6X38BOLT, FLANGED, 6X38
-
9200292002-1170 BOLT, BANJO, 10X25BOLT, BANJO, 10X25
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
92002B92002-1874 BOLT, 10X191BOLT, 10X191
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
92005A92005-1278 FITTINGFITTING
-
9200992009-1325 SCREW, 6X20SCREW, 6X20
-
9203692036-023 RING, SNAPRING, SNAP
-
9203792037-1486 CLAMP, 55MMCLAMP, 55MM
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9206692066-1158 PLUGPLUG
-
92066A92066-1183 PLUG, SENSOR WATERPLUG, SENSOR WATER
