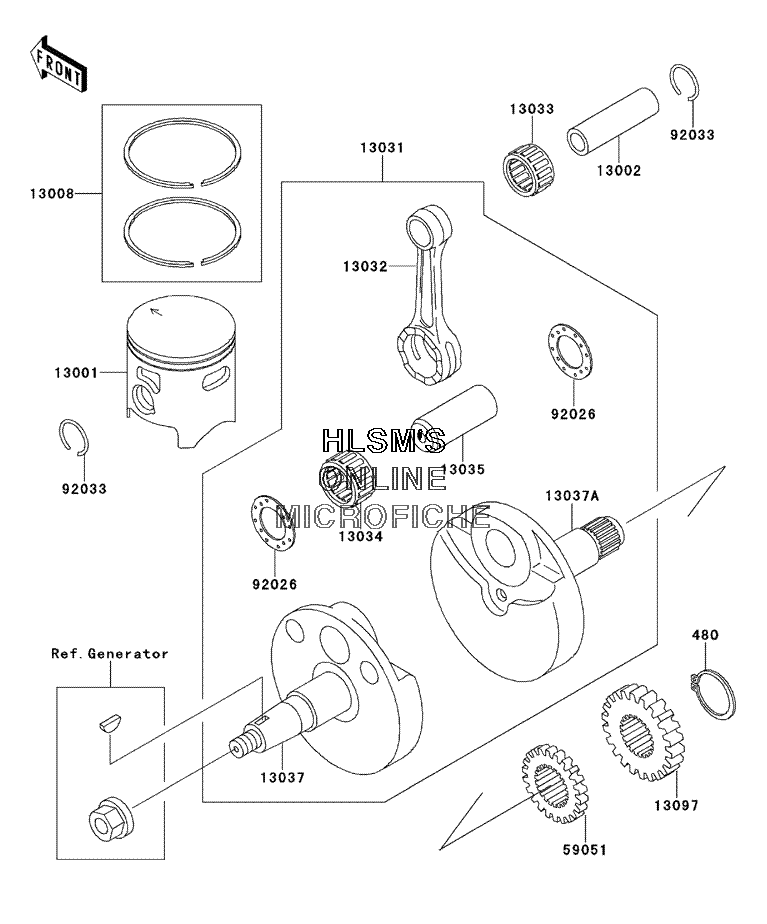

CRANKSHAFT - PISTON(S) для Kawasaki KX 100 - 2000 года выпуска
-
№АртикулНазвание
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
1300113001-1503 PISTON, ENGINEPISTON, ENGINE
-
1300213002-1018 PIN, PISTONPIN, PISTON
-
1300813008-1107 RING, SET, PISTONRING, SET, PISTON
-
1303113031-1433 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1230 ROD, CONNECTINGROD, CONNECTING
-
1303313033-1053 BEARING, SMALL END, 14R1818AP, 1BEARING, SMALL END, 14R1818AP, 1
-
1303413034-1104 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1054 PIN, CRANKPIN, CRANK
-
1303713037-1571 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1572 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1148 GEAR, PRIMARY SPUR (20 TEETH)GEAR, PRIMARY SPUR (20 TEETH)
-
5905159051-1146 GEAR, SPUR, PUMP (23 TEETH)GEAR, SPUR, PUMP (23 TEETH)
-
9202692026-1136 SPACER, 22.2X37X1.0SPACER, 22.2X37X1.0
-
9203392033-1050 RING, SNAPRING, SNAP
