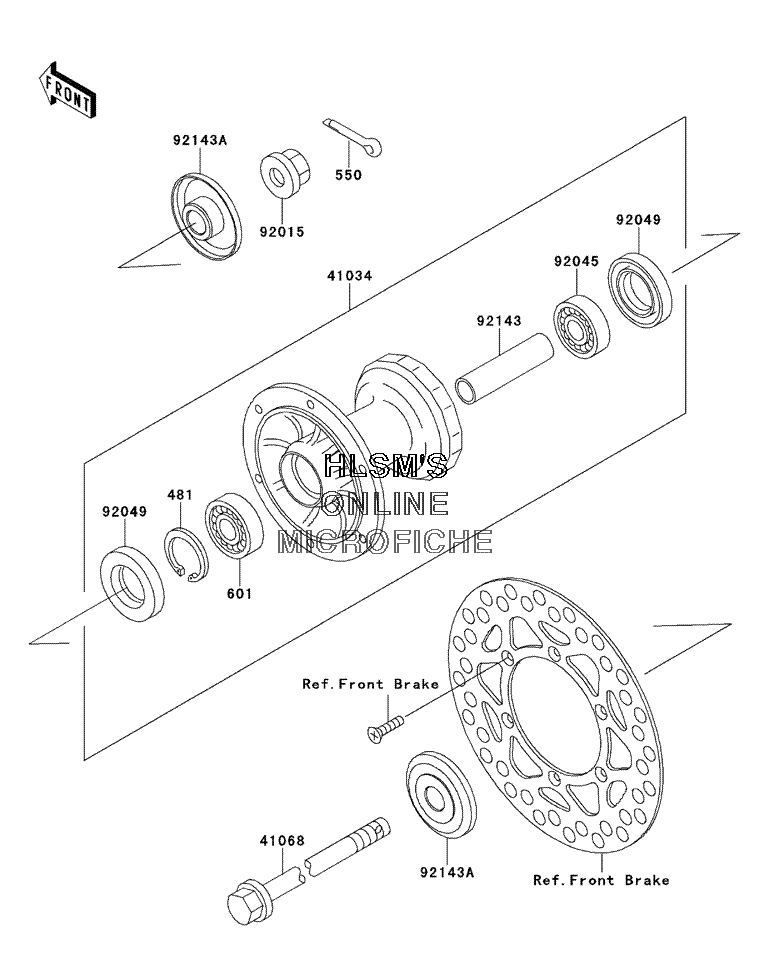

FRONT HUB для Kawasaki KX 100 - 2000 года выпуска
-
№АртикулНазвание
-
481481J3700 CIRCLIP, TYPE, C, 37MMCIRCLIP, TYPE, C, 37MM
-
550550D2520 PIN, COTTER, 2.5X20PIN, COTTER, 2.5X20
-
601601B6301UU BEARING, BALL, #6201UUC3BEARING, BALL, #6201UUC3
-
4103441034-1275 DRUM, ASSY., FRONT BRAKEDRUM, ASSY., FRONT BRAKE
-
4106841068-1333 AXLE, FRONTAXLE, FRONT
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9204592045-1062 BEARING, BALL, TMB201LLUC3/2ABEARING, BALL, TMB201LLUC3/2A
-
9204992049-1257 SEAL, OIL, TC20376.5SEAL, OIL, TC20376.5
-
9214392143-1935 COLLAR, FRONT BRAKE DRUM, L=76COLLAR, FRONT BRAKE DRUM, L=76
-
92143A92143-1936 COLLAR, FRONT AXLE, L=12COLLAR, FRONT AXLE, L=12
Все узлы модели:
- ACCESSORY
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CABLES
- CARBURETOR
- CARBURETOR - OPTIONAL PARTS
- CLUTCH
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER HEAD W/CYLINDER
- ENGINE COVER
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTING(S)
- FRONT FORK
- • FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MUFFLER(S)
- OWNER TOOLS
- RADIATOR
- REAR HUB
- SEAT
- SIDE COVERS
- STAND(S)
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TRANSMISSION
- WHEELS/TIRES
