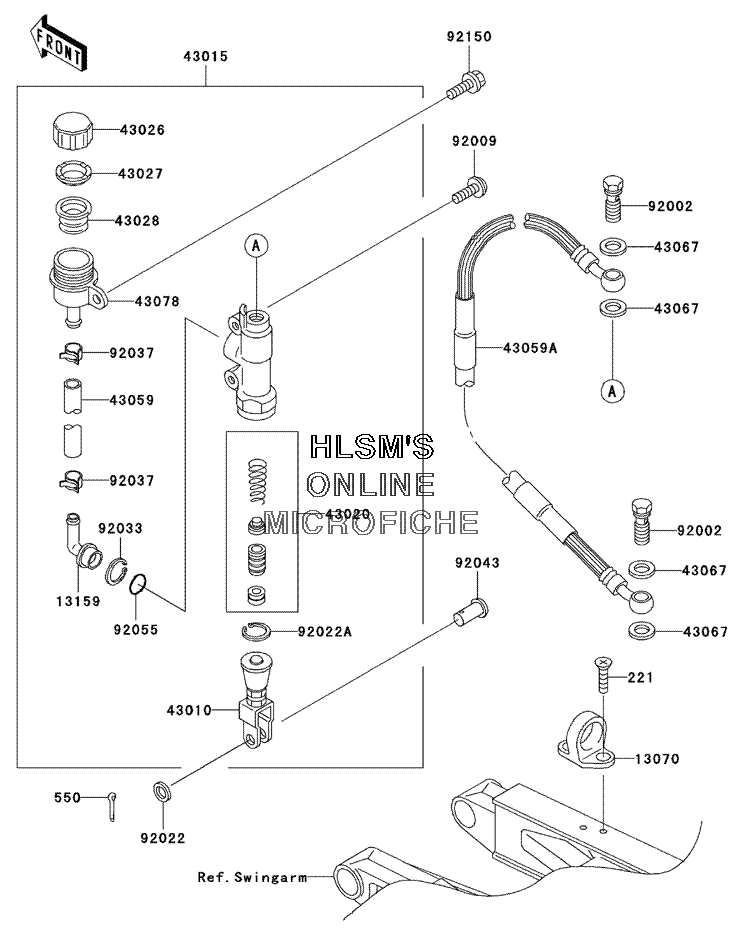

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX 500 - 2001 года выпуска
-
№АртикулНазвание
-
221221B0610 SCREW, CSK, CROS, 6X10SCREW, CSK, CROS, 6X10
-
550550S2015 PIN, COTTERPIN, COTTER
-
1307013070-1144 GUIDE, HOSEGUIDE, HOSE
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1068 ROD, ASSY., BRAKEROD, ASSY., BRAKE
-
4301543015-1368 CYLINDER, ASSY., MASTER, REARCYLINDER, ASSY., MASTER, REAR
-
4302043020-1094 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1058 CAP, BRAKECAP, BRAKE
-
4302743027-1052 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1060 DIAPHRAGMDIAPHRAGM
-
4305943059-1380 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
43059A43059-1924 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1068 RESERVOIRRESERVOIR
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1287 SCREW, 6X14 (WHITE)SCREW, 6X14 (WHITE)
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-1039 PINPIN
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
