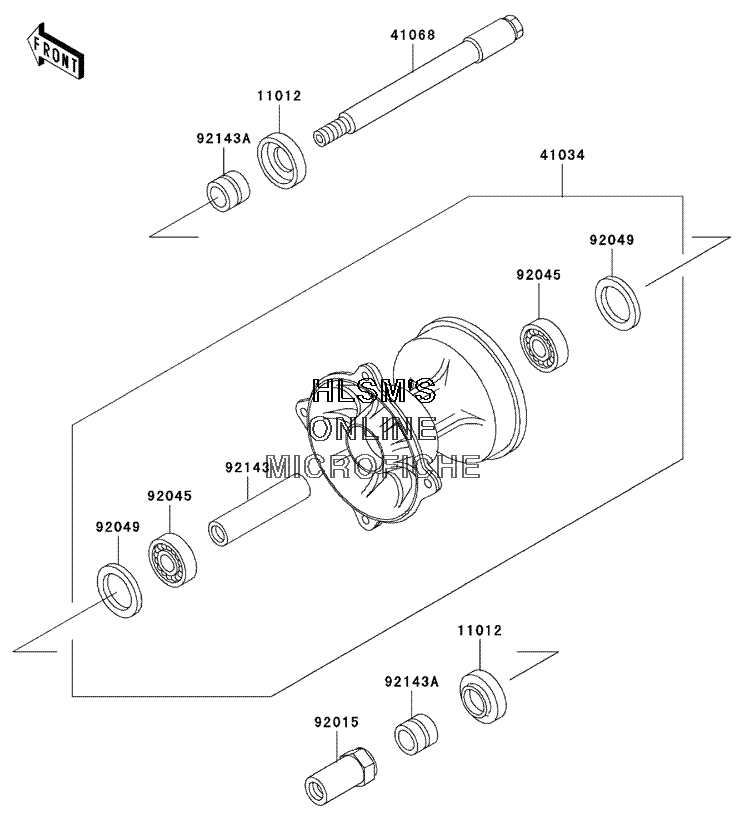

FRONT HUB для Kawasaki KX 500 - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1581 CAP, AXLECAP, AXLE
-
4103441034-1226 DRUM, ASSY., FRONT BRAKEDRUM, ASSY., FRONT BRAKE
-
4106841068-1342 AXLE, FRONTAXLE, FRONT
-
9201592015-1884 NUT, AXLE, 18MMNUT, AXLE, 18MM
-
9204592045-1284 BEARING, BALL, 69042RSBEARING, BALL, 69042RS
-
9204992049-1403 SEAL, OIL, BJNC, 2 25X37X5SEAL, OIL, BJNC, 2 25X37X5
-
9214392143-1580 COLLAR, FRONT BRAKE DRUM, L=72COLLAR, FRONT BRAKE DRUM, L=72
-
92143A92143-1581 COLLAR, FRONT AXLE, L=20COLLAR, FRONT AXLE, L=20
