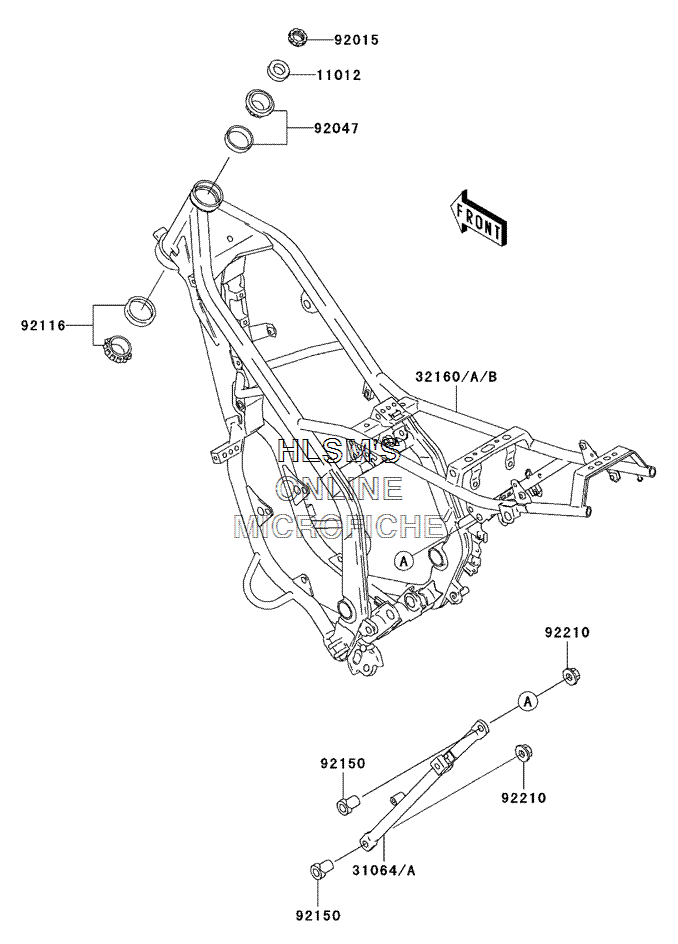

FRAME для Kawasaki KDX 200 - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1762 CAP, STEERING STEMCAP, STEERING STEM
-
3106431064-1163-CC PIPE, COMP, SUB FRAME (L.GREEN)PIPE, COMP, SUB FRAME (L.GREEN)
-
32160A32160-1756-CC FRAME, COMP (L.GREEN)FRAME, COMP (L.GREEN)
-
9201592015-1546 NUT, 25MM, T=12NUT, 25MM, T=12
-
9204792047-017 RACE, ROLLER, 32005JR RSRACE, ROLLER, 32005JR RS
-
9211692116-1069 BEARING, ROLLER, HI, CAP32006JRRSBEARING, ROLLER, HI, CAP32006JRRS
-
9215092150-1221 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CABLES
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER HEAD W/CYLINDER
- DECALS
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- • FRAME
- FRONT FORK
- FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OWNER TOOLS
- RADIATOR
- REAR HUB
- SEAT
- SIDE COVER(S) W/ CHAIN COVER
- STAND(S)
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- WHEELS/TIRES
