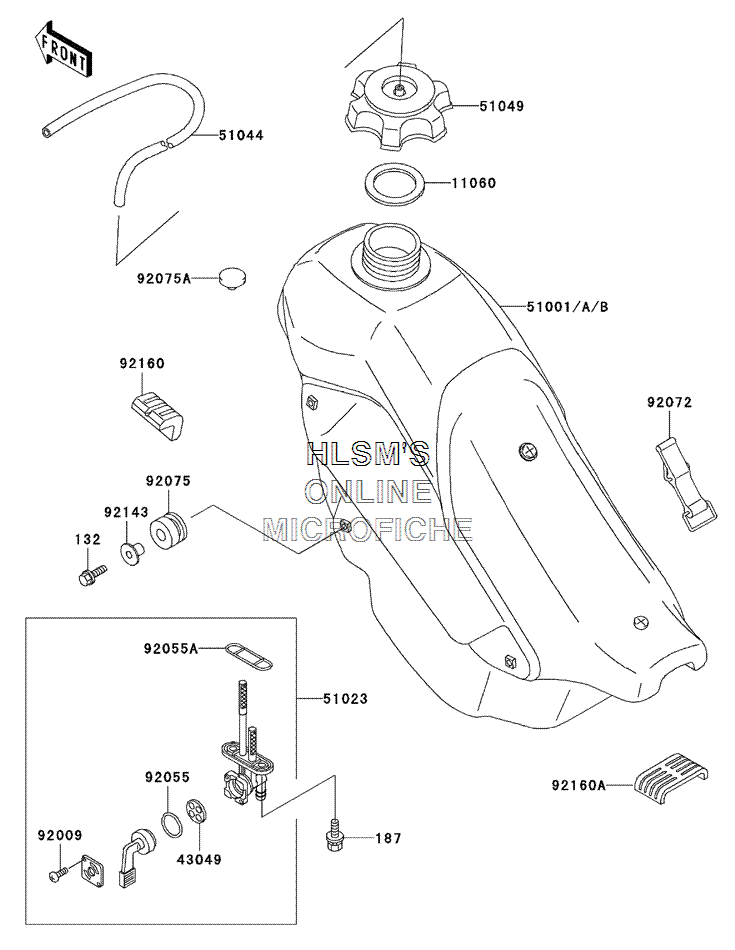

FUEL TANK для Kawasaki KDX 200 - 2002 года выпуска
-
№АртикулНазвание
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
187187B0616 BOLT, UPSET, WSPBOLT, UPSET, WSP
-
1106011060-1340 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
4304943049-1017 PACKING, FUEL TAP LEVERPACKING, FUEL TAP LEVER
-
51001A51001-1668-6W TANK, COMP, FUEL (L.GREEN)TANK, COMP, FUEL (L.GREEN)
-
5102351023-1214 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5104451044-1185 TUBE, ASSY.TUBE, ASSY.
-
5104951049-1108 CAP, TANK, FUELCAP, TANK, FUEL
-
9200992009-1123 SCREW, 3X5SCREW, 3X5
-
9205592055-1111 O-RING, FUEL TAP LEVERO-RING, FUEL TAP LEVER
-
92055A92055-1348 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
9207292072-1229 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
92075A92075-281 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9216092160-1328 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92160A92160-1397 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
