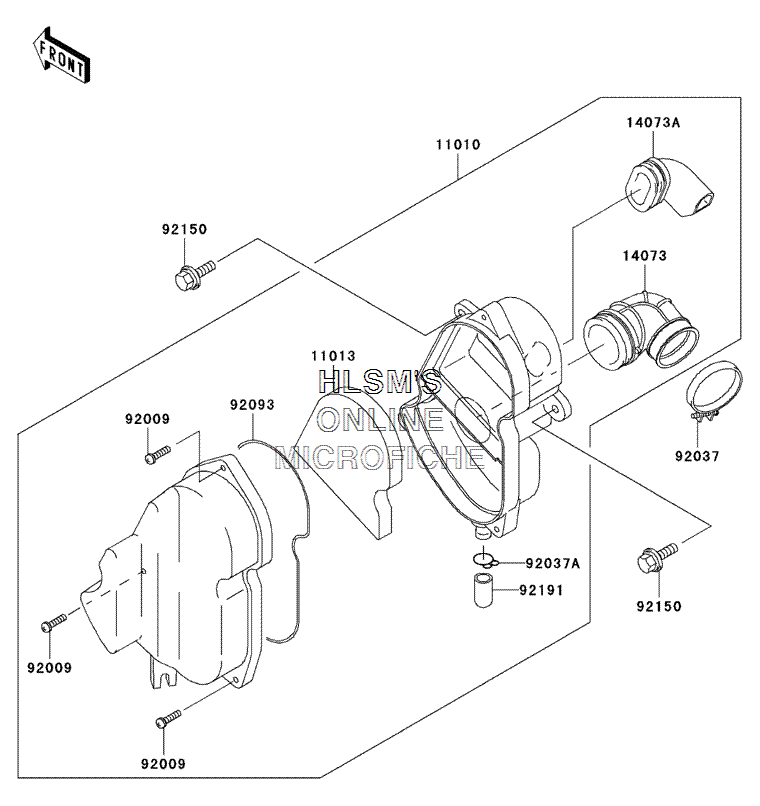

AIR CLEANER для Kawasaki KLX 110 - 2002 года выпуска
-
№АртикулНазвание
-
1101011010-1773 FILTER, ASSY, AIRFILTER, ASSY, AIR
-
1101311013-1294 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1407314073-1819 DUCT, CARBURETORDUCT, CARBURETOR
-
14073A14073-1820 DUCT, INDUCT, IN
-
9200992009-1990 SCREW, M5X20SCREW, M5X20
-
9203792037-1305 CLAMP, CARBURETOR HOLDCLAMP, CARBURETOR HOLD
-
92037A92037-1900 CLAMP, 14.5MMCLAMP, 14.5MM
-
9209392093-1560 SEAL, AIR CLEANERSEAL, AIR CLEANER
-
9215092150-1339 BOLT, 6X20BOLT, 6X20
-
9219192191-1704 TUBETUBE
