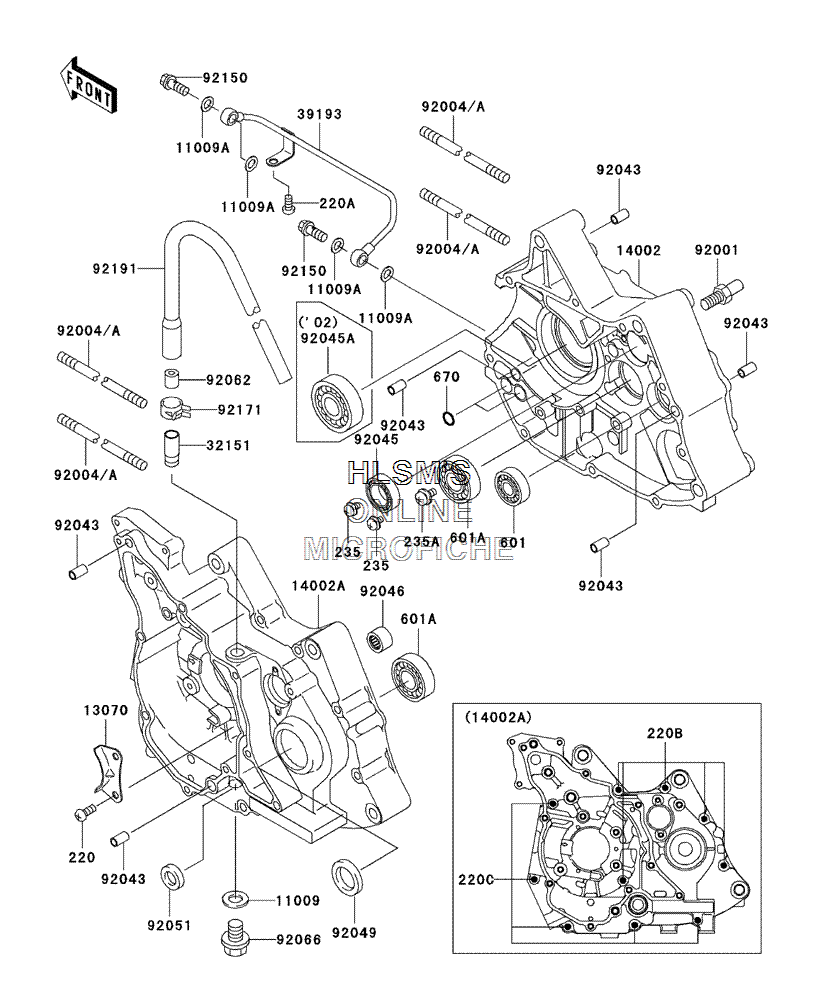

CRANKCASE для Kawasaki KLX 110 - 2002 года выпуска
-
№АртикулНазвание
-
220220B0614 SCREW, PAN, CROS, 6X14SCREW, PAN, CROS, 6X14
-
220A220X0612 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220X0650 SCREW, PAN, CROSSCREW, PAN, CROS
-
220C220X0675 SCREW, PAN, CROSSCREW, PAN, CROS
-
235235B0510 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
235A235B0614 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
601601A6201 BEARING, BALLBEARING, BALL
-
601A601A6203 BEARING, BALL, #6203BEARING, BALL, #6203
-
670670B1510 O-RING, 10MMO-RING, 10MM
-
1100911009-1332 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
11009A11009-1344 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
1307013070-1319 GUIDEGUIDE
-
1400214002-1971 CRANKCASE (RIGHT)CRANKCASE (RIGHT)
-
14002A14002-1973 CRANKCASE (LEFT)CRANKCASE (LEFT)
-
3215132151-1961 PIPEPIPE
-
3919339193-1042 PIPE, OILPIPE, OIL
-
9200192001-1455 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9200492004-053 STUD, 8X190STUD, 8X190
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1171 BEARING, BALL, 6804BEARING, BALL, 6804
-
92045A92045-1293 BEARING, BALLBEARING, BALL
-
9204692046-1148 BEARING, NEEDLE, HK1312BEARING, NEEDLE, HK1312
-
9204992049-1048 SEAL, OIL, SC22325SEAL, OIL, SC22325
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9206292062-1090 NOZZLE, 5X11.5X12NOZZLE, 5X11.5X12
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9215092150-1556 BOLT, BANJO, 8X20BOLT, BANJO, 8X20
-
9217192171-1055 CLAMPCLAMP
-
9219192191-1724 TUBE, BREATHERTUBE, BREATHER
