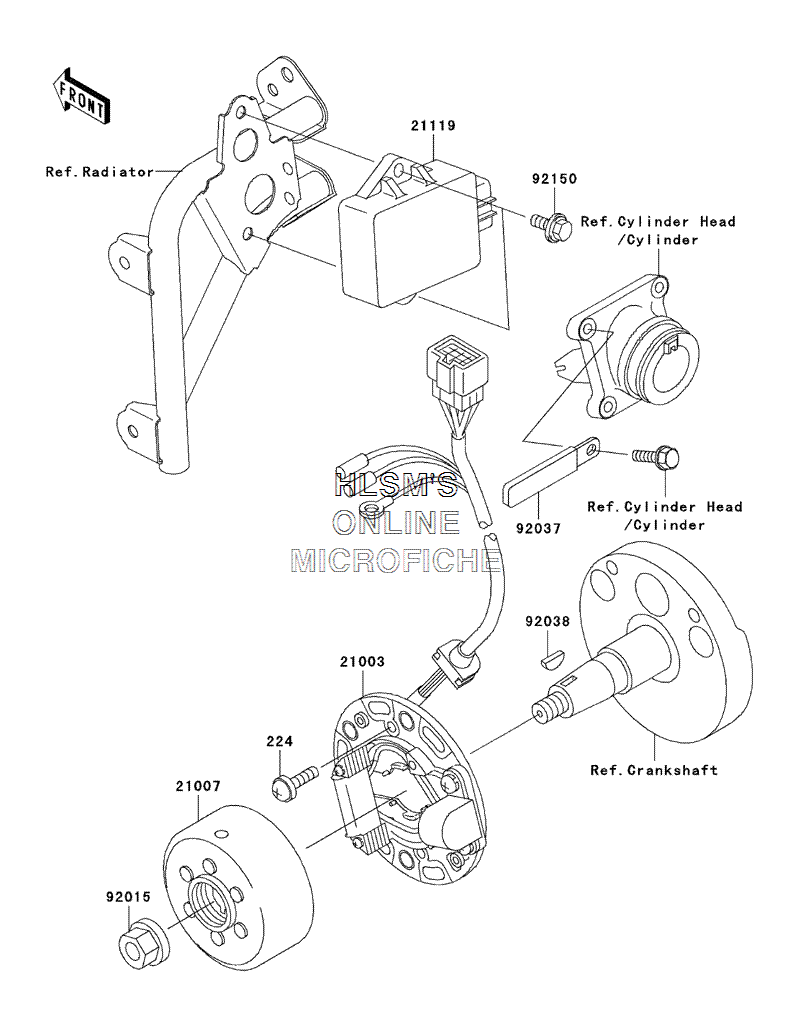

GENERATOR для Kawasaki KX 100 - 2002 года выпуска
-
№АртикулНазвание
-
224224B0614 SCREW, PAN, WP, CROS 6X14SCREW, PAN, WP, CROS 6X14
-
2100321003-1366 STATORSTATOR
-
2100721007-1239 ROTOR, MAGNETOROTOR, MAGNETO
-
2111921119-1589 IGNITERIGNITER
-
9201592015-077 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203792037-1069 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
