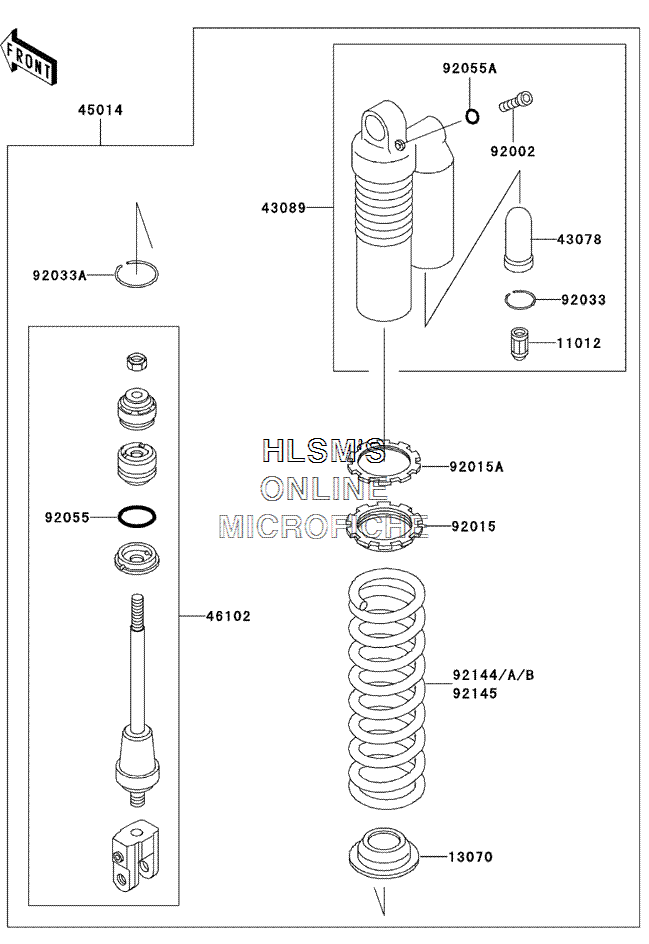

SUSPENSION - SHOCK ABSORBER для Kawasaki KX 100 - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1391 CAP, VALVE AIRCAP, VALVE AIR
-
1307013070-1233 GUIDE, SPRINGGUIDE, SPRING
-
4307843078-1112 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
4308943089-1162 CYLINDER, SHOCKABSORBERCYLINDER, SHOCKABSORBER
-
4501445014-1662-8V SHOCKABSORBER (I.SILVER)SHOCKABSORBER (I.SILVER)
-
4610246102-1411 ROD, SHOCKABSORBERROD, SHOCKABSORBER
-
9200292002-1955 BOLT, DRAINBOLT, DRAIN
-
9201592015-1679 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015A92015-1713 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
9203392033-1091 RING, SNAP, REARSHOCKRING, SNAP, REARSHOCK
-
92033A92033-1211 RING, SNAP, SHOCKABSORBERRING, SNAP, SHOCKABSORBER
-
9205592055-1334 O-RING, RODO-RING, ROD
-
92055A92055-1383 O-RINGO-RING
-
9214492144-1570-8V SPRING, SHOCKABSORBER, K=4.6, SIL (OPT)SPRING, SHOCKABSORBER, K=4.6, SIL (OPT)
-
92144A92144-1571-8V SPRING, SHOCKABSORBER, K=5.0, SIL (OPT)SPRING, SHOCKABSORBER, K=5.0, SIL (OPT)
-
92144B92144-1945-8V SPRING, SHOCKABSORBER, K=4.8, SILSPRING, SHOCKABSORBER, K=4.8, SIL
-
9214592145-1371-8V SPRING, SHOCKABSORBER, K=4.4, SIL (OPT)SPRING, SHOCKABSORBER, K=4.4, SIL (OPT)
