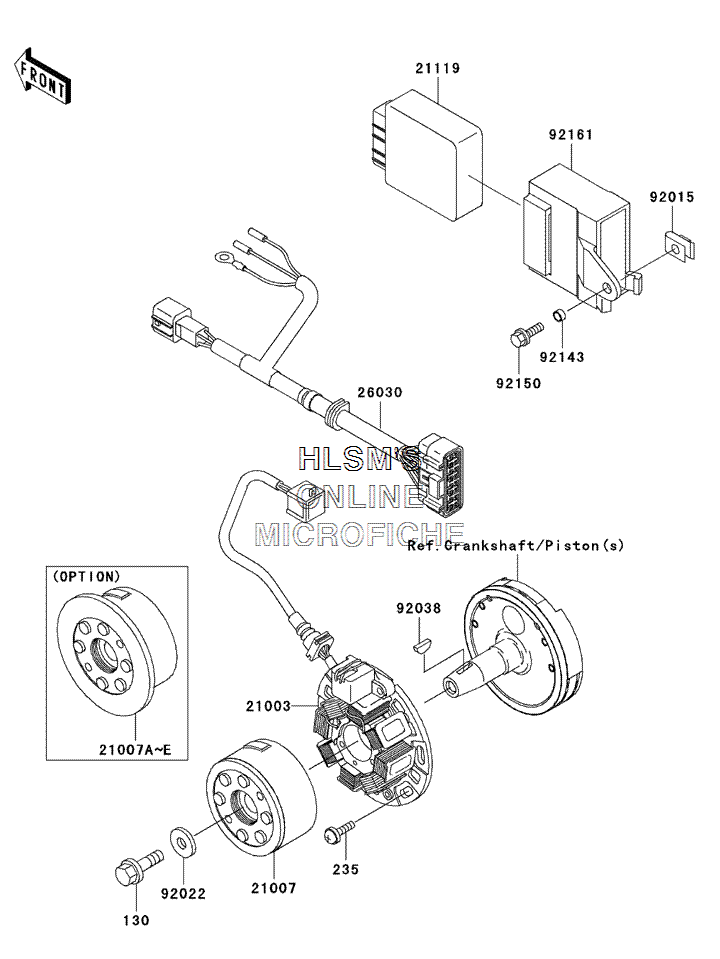

GENERATOR для Kawasaki KX 125 - 2002 года выпуска
-
№АртикулНазвание
-
130130P0825 BOLT, FLANGEDBOLT, FLANGED
-
235235B0616 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
2100321003-1365 STATORSTATOR
-
2100721007-1386 ROTOR, I=4.0KGCM2ROTOR, I=4.0KGCM2
-
21007A21007-1387 ROTOR, I=4.5KGCM2 (OPT)ROTOR, I=4.5KGCM2 (OPT)
-
21007B21007-1388 ROTOR, I=4.9KGCM2 (OPT)ROTOR, I=4.9KGCM2 (OPT)
-
21007C21007-1389 ROTOR, I=5.5KGCM2 (OPT)ROTOR, I=5.5KGCM2 (OPT)
-
21007D21007-1390 ROTOR, I=5.9KGCM2 (OPT)ROTOR, I=5.9KGCM2 (OPT)
-
21007E21007-1407 ROTOR, I=3.8KGCM2 (OPT)ROTOR, I=3.8KGCM2 (OPT)
-
2111921119-1597 IGNITERIGNITER
-
2603026030-1790 HARNESSHARNESS
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9202292022-276 WASHER, 8.5X22X3.2WASHER, 8.5X22X3.2
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9214392143-1561 COLLARCOLLAR
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216192161-1156 DAMPERDAMPER
