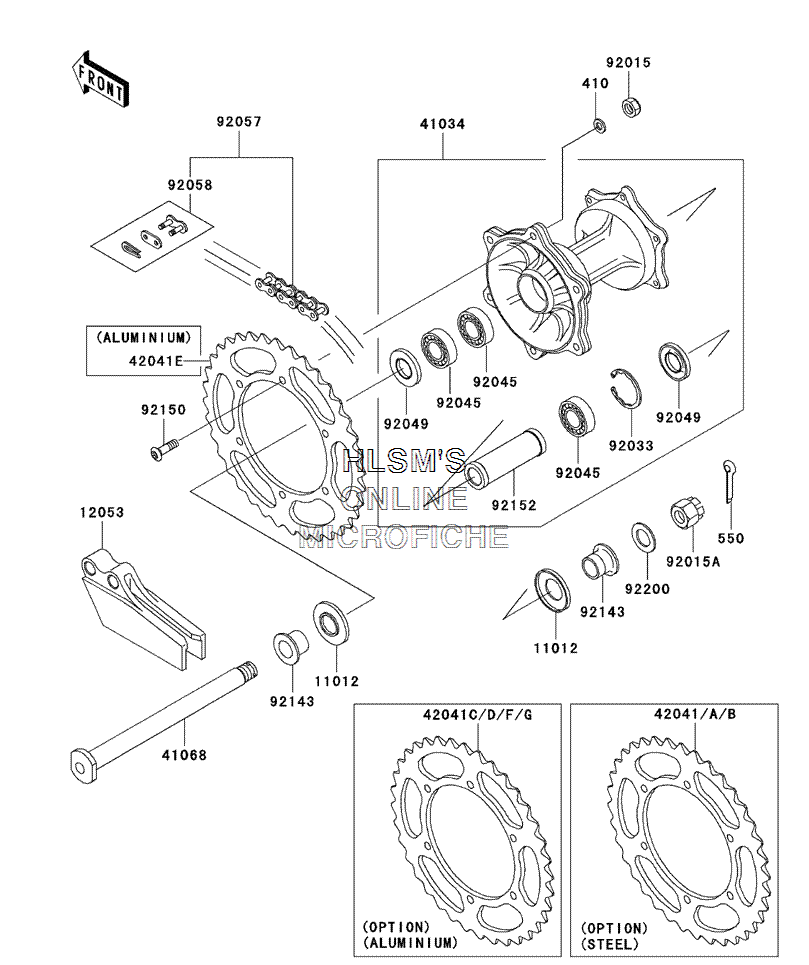

REAR HUB для Kawasaki KX 125 - 2002 года выпуска
-
№АртикулНазвание
-
410410B0800 WASHER, PLAIN, SMALL, 8MMWASHER, PLAIN, SMALL, 8MM
-
550550D3025 PIN, COTTER, 3.0X25PIN, COTTER, 3.0X25
-
1101211012-1581 CAP, AXLECAP, AXLE
-
1205312053-1376 GUIDE, CHAIN, DRIVE, REARGUIDE, CHAIN, DRIVE, REAR
-
4103441034-1301 DRUM, ASSY, REAR BRAKEDRUM, ASSY, REAR BRAKE
-
4106841068-1343 AXLE, REARAXLE, REAR
-
4204142041-1383 SPROCKET, HUB (48 TEETH) (OPT)SPROCKET, HUB (48 TEETH) (OPT)
-
42041A42041-1384 SPROCKET, HUB (49 TEETH) (OPT)SPROCKET, HUB (49 TEETH) (OPT)
-
42041B42041-1408 SPROCKET, HUB (50 TEETH) (OPT)SPROCKET, HUB (50 TEETH) (OPT)
-
42041C42041-1447 SPROCKET, HUB (47 TEETH), AL (OPT)SPROCKET, HUB (47 TEETH), AL (OPT)
-
42041D42041-1448 SPROCKET, HUB (48 TEETH), AL (OPT)SPROCKET, HUB (48 TEETH), AL (OPT)
-
42041E42041-1449 SPROCKET, HUB (49 TEETH), ALSPROCKET, HUB (49 TEETH), AL
-
42041F42041-1450 SPROCKET, HUB (50 TEETH) AL (OPT)SPROCKET, HUB (50 TEETH) AL (OPT)
-
42041G42041-1451 SPROCKET, HUB (51 TEETH) AL (OPT)SPROCKET, HUB (51 TEETH) AL (OPT)
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1885 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204592045-1239 BEARING, BALL, 6004X8JRLLX2/3ABEARING, BALL, 6004X8JRLLX2/3A
-
9204992049-1314 SEAL, OIL, MHSA25 42 6SEAL, OIL, MHSA25 42 6
-
9205792057-1458 CHAIN, DRIVE, DID520DMAX110LCHAIN, DRIVE, DID520DMAX110L
-
9205892058-1074 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9214392143-1905 COLLAR, REAR AXLE, L=20COLLAR, REAR AXLE, L=20
-
9215092150-1978 BOLT, SOCKET, 8X28BOLT, SOCKET, 8X28
-
9215292152-1144 COLLAR, REAR BRAKE DRUM, L=93COLLAR, REAR BRAKE DRUM, L=93
-
9220092200-1149 WASHER, 18.5X32X2.3WASHER, 18.5X32X2.3
