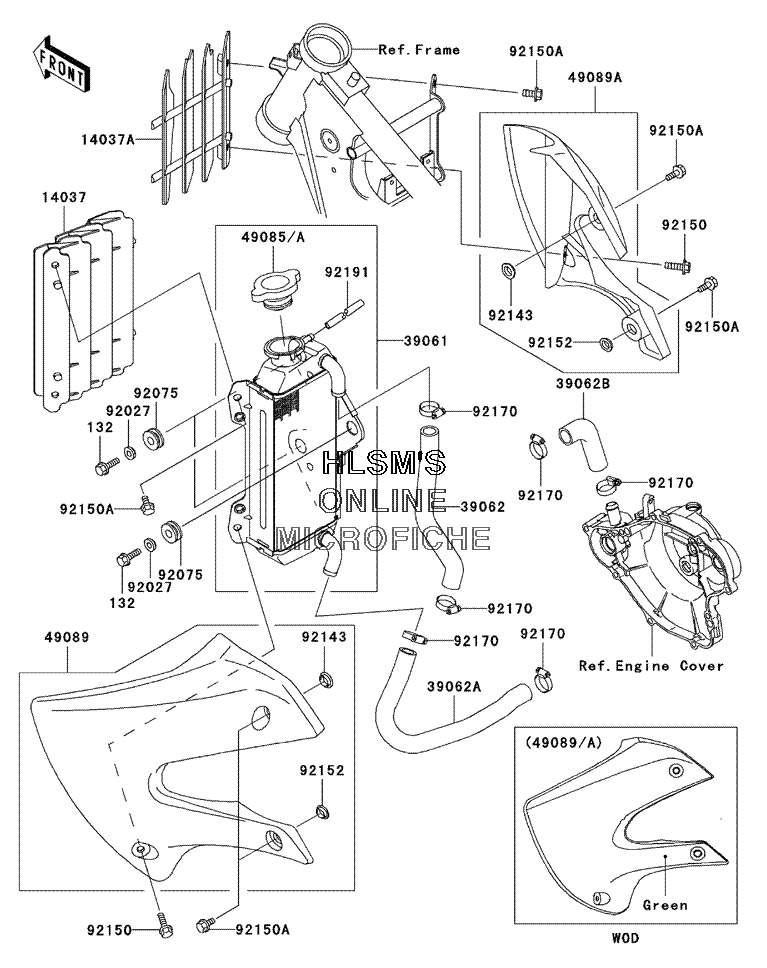

RADIATOR для Kawasaki KX 65 - 2002 года выпуска
-
№АртикулНазвание
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1403714037-1266-RZ SCREEN (LEFT) (WHITE)SCREEN (LEFT) (WHITE)
-
14037A14037-1274-RZ SCREEN (RIGHT) (WHITE)SCREEN (RIGHT) (WHITE)
-
3906139061-1277 RADIATOR, ASSY.RADIATOR, ASSY.
-
3906239062-1808 HOSE, COOLING, HEAD, RADIATORHOSE, COOLING, HEAD, RADIATOR
-
39062A39062-1809 HOSE, COOLING, PUMP, RADIATORHOSE, COOLING, PUMP, RADIATOR
-
39062B39062-1810 HOSE, COOLING, PIPE, CYLINDERHOSE, COOLING, PIPE, CYLINDER
-
4908549085-1076 CAP, ASSY., PRESSURE, P1.1CAP, ASSY., PRESSURE, P1.1
-
49085A49085-1077 CAP, ASSY., PRESSURE, P1.8 (OPT)CAP, ASSY., PRESSURE, P1.8 (OPT)
-
4908949089-1144-6W SHROUD, ENGINE (LEFT) (L.GREEN)SHROUD, ENGINE (LEFT) (L.GREEN)
-
49089A49089-1145-6W SHROUD, ENGINE (RIGHT) (L.GREEN)SHROUD, ENGINE (RIGHT) (L.GREEN)
-
9202792027-194 COLLAR, L=11.1COLLAR, L=11.1
-
9207592075-209 DAMPERDAMPER
-
9214392143-1196 COLLARCOLLAR
-
9215092150-1339 BOLT, 6X20BOLT, 6X20
-
92150A92150-1435 BOLT, 6X12BOLT, 6X12
-
9215292152-1235 COLLARCOLLAR
-
9217092170-1283 CLAMPCLAMP
-
9219192191-1434 TUBETUBE
