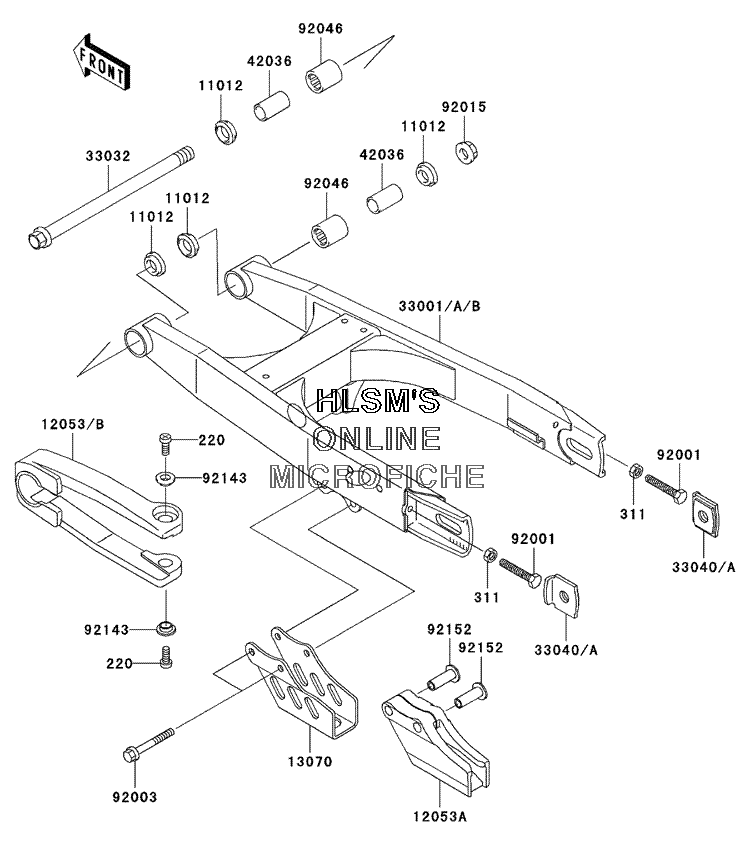

SUSPENSION - SWINGARM для Kawasaki KX 65 - 2002 года выпуска
-
№АртикулНазвание
-
220220B0508 SCREW, PAN, CROS, 5X8SCREW, PAN, CROS, 5X8
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
1101211012-1263 CAPCAP
-
12053A12053-1436 GUIDE, CHAIN, REARGUIDE, CHAIN, REAR
-
12053B12053-1456 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
1307013070-1347 GUIDE, CHAINGUIDE, CHAIN
-
33001A33001-1623-TX ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-1194 SHAFT, SWING ARMSHAFT, SWING ARM
-
33040A33040-1188 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1067 SLEEVE, SWING ARM, L=34SLEEVE, SWING ARM, L=34
-
9200192001-1463 BOLT, 6X39BOLT, 6X39
-
9200392003-179 BOLT, FLANGED, 6X48BOLT, FLANGED, 6X48
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9204692046-1046 BEARING, NEEDLEBEARING, NEEDLE
-
9214392143-1676 COLLARCOLLAR
-
9215292152-1215 COLLARCOLLAR
