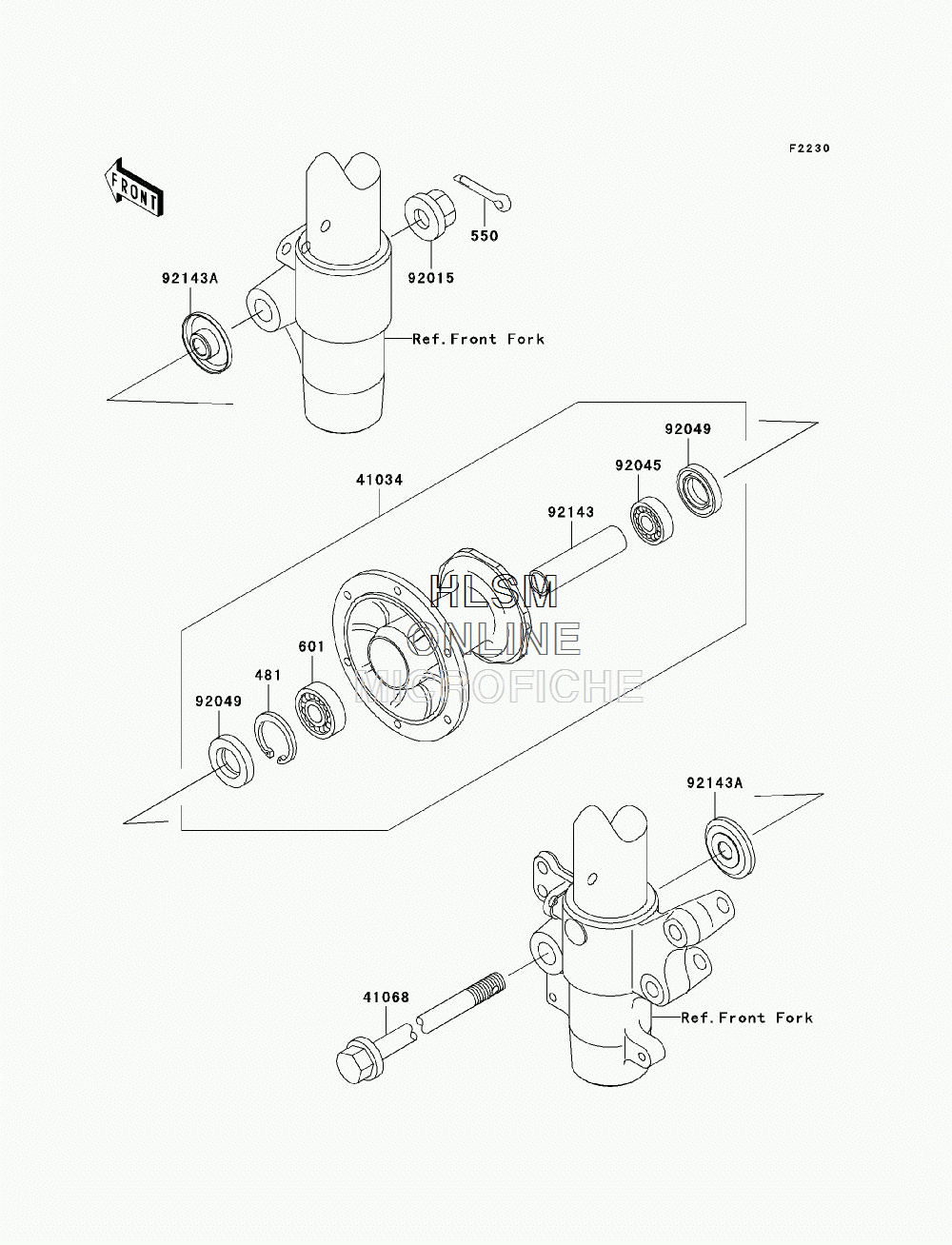

FRONT HUB для Kawasaki KX 85 - 2002 года выпуска
-
№АртикулНазвание
-
481481J3700 CIRCLIP-TYPE-C,37MMCIRCLIP-TYPE-C,37MM
-
550550D2520 PIN-COTTER,2.5X20PIN-COTTER,2.5X20
-
601601B6301UU BEARING-BALL,#6201UUC3BEARING-BALL,#6201UUC3
-
4103441034-1310 DRUM-ASSY, FRONT BRAKEDRUM-ASSY, FRONT BRAKE
-
4106841068-1333 AXLE, FRONTAXLE, FRONT
-
9201592015-1433 NUT,FLANGED,12MMNUT,FLANGED,12MM
-
9204592045-1062 BEARING-BALL,TMB201LLUC3/2ABEARING-BALL,TMB201LLUC3/2A
-
9204992049-1257 SEAL-OIL,TC20376.5SEAL-OIL,TC20376.5
-
9214392143-1935 COLLAR, FRONT BRAKE DRUM,L=76COLLAR, FRONT BRAKE DRUM,L=76
-
92143A92143-1936 COLLAR, FRONT AXLE,L=12COLLAR, FRONT AXLE,L=12
