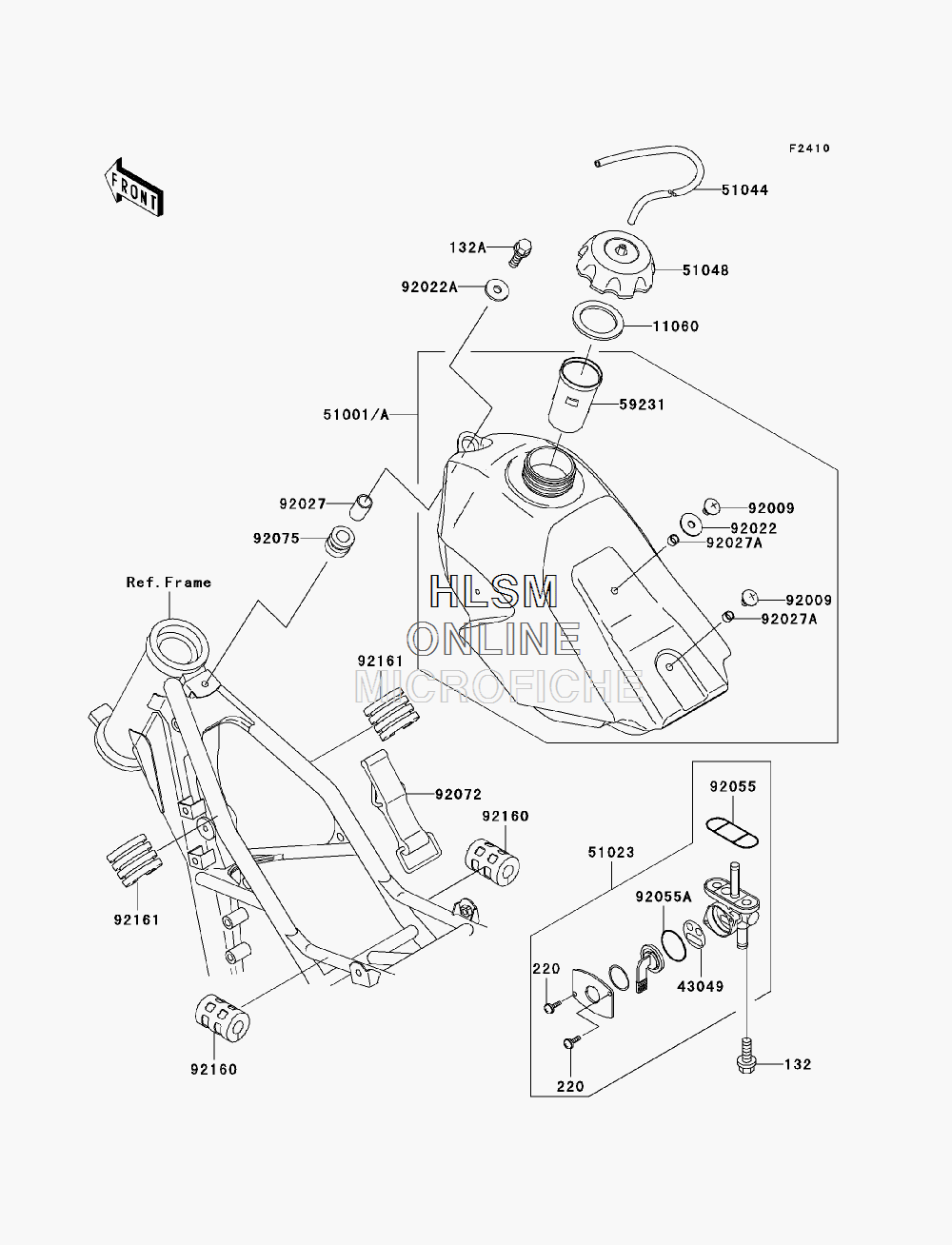

FUEL TANK для Kawasaki KX 85 - 2002 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132G0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220220B0308 SCREW-PAN-CROSSCREW-PAN-CROS
-
1106011060-1340 GASKET,FUEL TANK CAPGASKET,FUEL TANK CAP
-
4304943049-1091 PACKING,TAP VALVEPACKING,TAP VALVE
-
5100151001-1603-6Z TANK-COMP-FUEL,F.BLACKTANK-COMP-FUEL,F.BLACK
-
5102351023-1339 TAP-ASSY,FUELTAP-ASSY,FUEL
-
5104451044-1185 TUBE-ASSYTUBE-ASSY
-
5104851048-1124 CAP-ASSY-TANK,FUELCAP-ASSY-TANK,FUEL
-
5923159231-1096 FILLERFILLER
-
9200992009-1530 SCREW,6X10SCREW,6X10
-
9202292022-165 WASHER,PLAIN,6MMWASHER,PLAIN,6MM
-
92022A92022-1690 WASHER,6.5X24X2WASHER,6.5X24X2
-
9202792027-1966 COLLAR,6.8X10X14COLLAR,6.8X10X14
-
92027A92027-2096 COLLAR,6.2X7.8X5COLLAR,6.2X7.8X5
-
9205592055-1348 RING-O,FUEL TAP PACKINGRING-O,FUEL TAP PACKING
-
92055A92055-1419 RING-O,TAP LEVERRING-O,TAP LEVER
-
9207292072-1229 BAND,FUEL TANKBAND,FUEL TANK
-
9207592075-1787 DAMPERDAMPER
-
9216092160-1236 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
9216192161-1175 DAMPER,FUEL TANKDAMPER,FUEL TANK
