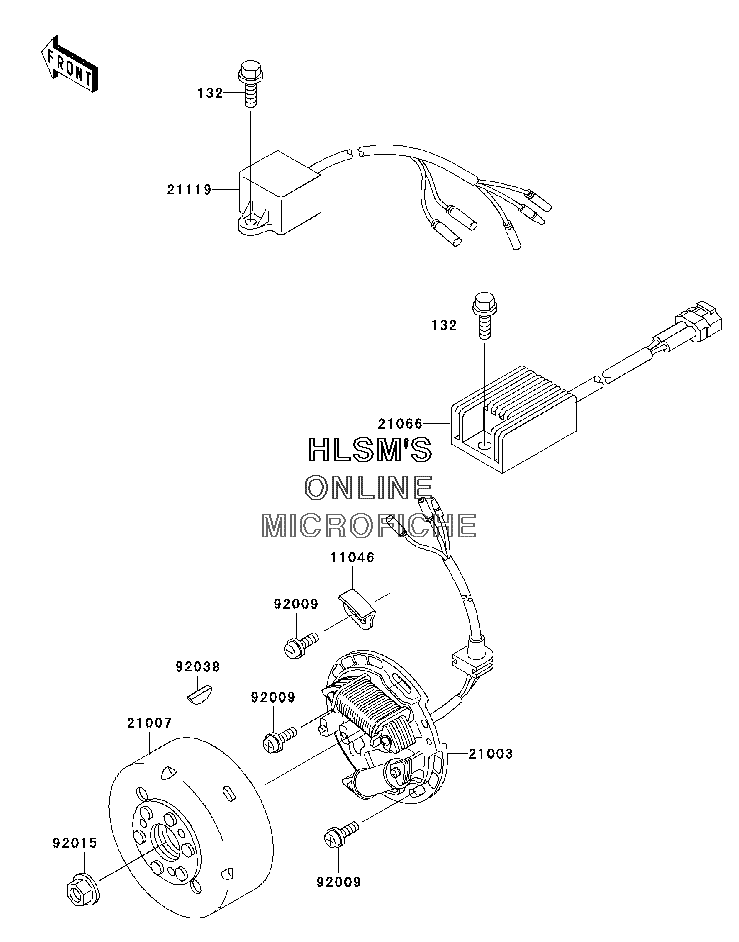

GENERATOR для Kawasaki KDX 200 - 2003 года выпуска
-
№АртикулНазвание
-
132132Y0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1104611046-1413 BRACKETBRACKET
-
2100321003-1279 STATORSTATOR
-
2100721007-1276 ROTOR, MAGNETOROTOR, MAGNETO
-
2106621066-1072 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2111921119-1432 IGNITERIGNITER
-
9200992009-1722 SCREW, 5X16SCREW, 5X16
-
9201592015-1156 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
