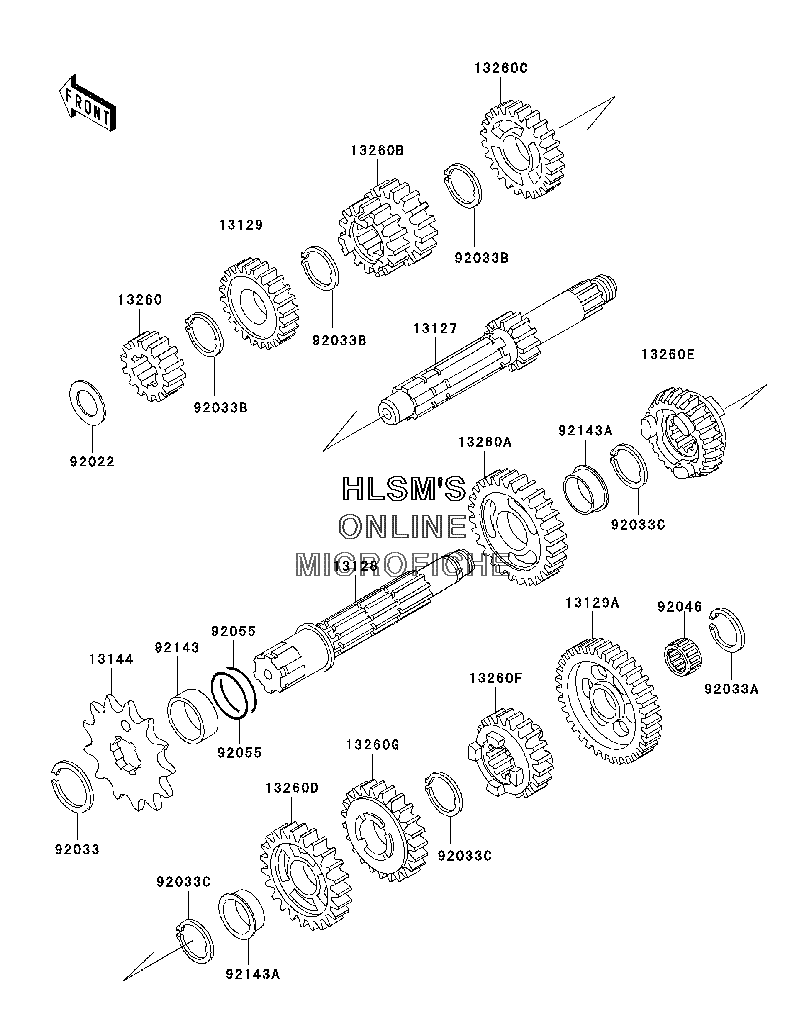

TRANSMISSION для Kawasaki KDX 200 - 2003 года выпуска

№

Артикул

Название
13127

13127-1237 SHAFT, TRANSMISSION INPUT (13 TEETH)

SHAFT, TRANSMISSION INPUT (13 TEETH)

33 490 ₽
13128

13128-1164 SHAFT, TRANSMISSION OUTPUT

SHAFT, TRANSMISSION OUTPUT

28 830 ₽
13129

13129-1753 GEAR, INPUT 5TH (24 TEETH)

GEAR, INPUT 5TH (24 TEETH)

17 870 ₽
13129A

13129-1755 GEAR, OUTPUT LOW (35 TEETH)

GEAR, OUTPUT LOW (35 TEETH)

17 870 ₽
13144

13144-1027 SPROCKET, OUTPUT (13 TEETH)

SPROCKET, OUTPUT (13 TEETH)

5 770 ₽
13260

13260-1003 GEAR, INPUT 2ND (14 TEETH)

GEAR, INPUT 2ND (14 TEETH)

12 320 ₽
13260A

13260-1004 GEAR, OUTPUT 2ND (28 TEETH)

GEAR, OUTPUT 2ND (28 TEETH)

17 870 ₽
13260B

13260-1006 GEAR, INPUT 3RD AND 4TH (15/17 TEETH)

GEAR, INPUT 3RD AND 4TH (15/17 TEETH)

18 890 ₽
13260C

13260-1425 GEAR, INPUT TOP (23 TEETH)

GEAR, INPUT TOP (23 TEETH)

17 970 ₽
13260D

13260-1426 GEAR, OUTPUT 3RD (23 TEETH)

GEAR, OUTPUT 3RD (23 TEETH)

17 970 ₽
13260E

13260-1427 GEAR, OUTPUT 5TH (25 TEETH)

GEAR, OUTPUT 5TH (25 TEETH)

17 970 ₽
13260F

13260-1489 GEAR, OUTPUT TOP (20 TEETH)

GEAR, OUTPUT TOP (20 TEETH)

17 970 ₽
13260G

13260-1567 GEAR, OUTPUT 4TH (21 TEETH)

GEAR, OUTPUT 4TH (21 TEETH)

17 970 ₽
92022

92022-170 WASHER, THRUST, 16.5X28X1

WASHER, THRUST, 16.5X28X1

1 520 ₽
92033

92033-026 RING, SNAP, 24MM

RING, SNAP, 24MM

1 360 ₽
92033A

92033-032 RING, SNAP

RING, SNAP

780 ₽
92033B

92033-1231 RING, SNAP, 20MM

RING, SNAP, 20MM

800 ₽
92033C

92033-1258 RING, SNAP, 20MM

RING, SNAP, 20MM

880 ₽
92046

92046-1059 BEARING, NEEDLE, K17X23X13.8X

BEARING, NEEDLE, K17X23X13.8X

3 440 ₽
92055

92055-035 O-RING

O-RING

780 ₽
92143

92143-1433 COLLAR

COLLAR

1 970 ₽
92143A

92143-1472 COLLAR

COLLAR

3 900 ₽
