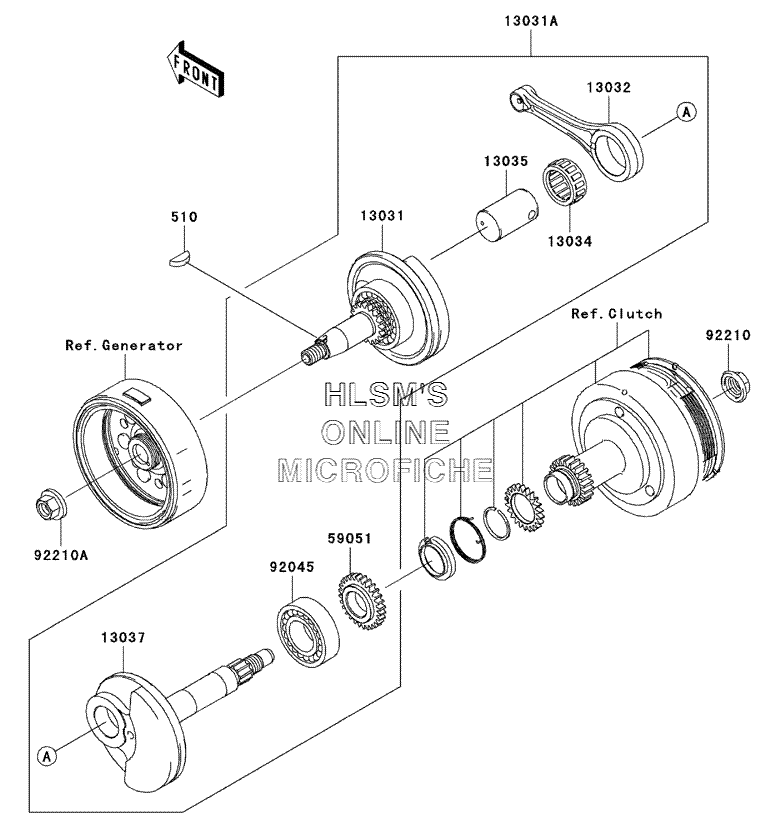

CRANKSHAFT для Kawasaki KLX 110 - 2003 года выпуска
-
№АртикулНазвание
-
510510A3200 KEY, WOODRUFFKEY, WOODRUFF
-
1303113031-0001 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
13031A13031-0010 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1277 ROD, CONNECTING, NGROD, CONNECTING, NG
-
1303413034-1113 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1092 PIN, CRANKPIN, CRANK
-
1303713037-1647 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
5905159051-1402 GEAR, SPURGEAR, SPUR
-
9204592045-1293 BEARING, BALLBEARING, BALL
-
9221092210-1374 NUT, 14MMNUT, 14MM
-
92210A92210-1375 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
