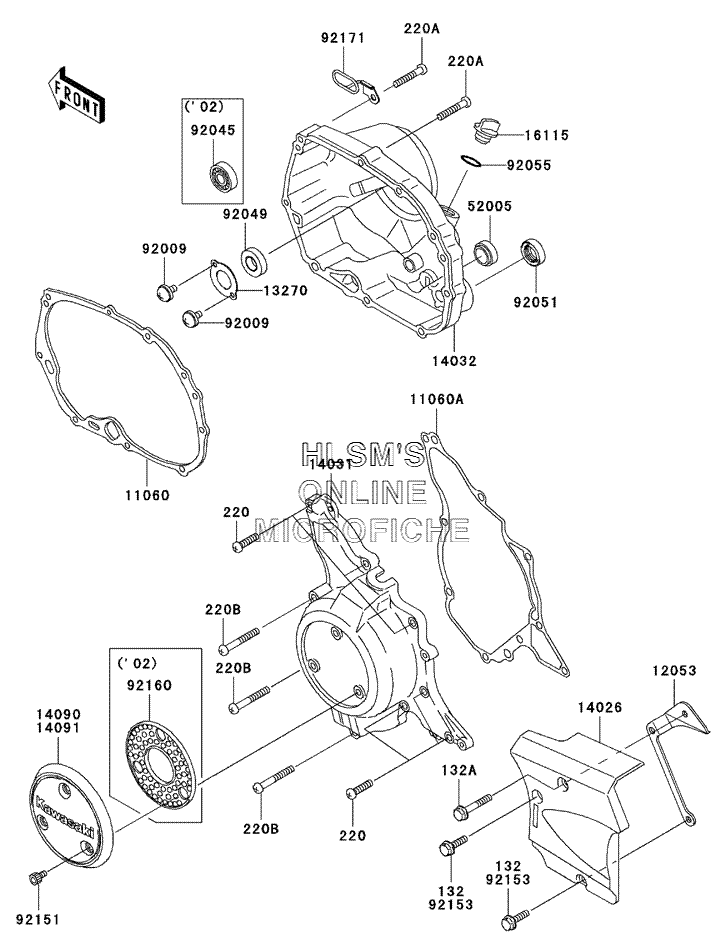

ENGINE COVER для Kawasaki KLX 110 - 2003 года выпуска
-
№АртикулНазвание
-
132A132Y0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220X0625 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220X0635 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220X0645 SCREW, PAN, CROSSCREW, PAN, CROS
-
1106011060-1797 GASKET, CLUTCHGASKET, CLUTCH
-
11060A11060-1798 GASKET, GENERATORGASKET, GENERATOR
-
1205312053-1467 GUIDE, CHAIN, TENSIONGUIDE, CHAIN, TENSION
-
1327013270-1800 PLATEPLATE
-
1402614026-1285 COVER, CHAINCOVER, CHAIN
-
1403114031-1342 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1529-10 COVER, CLUTCHCOVER, CLUTCH
-
1409114091-1444 COVER, HEAT INSULATORCOVER, HEAT INSULATOR
-
1611516115-1068 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1055 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200992009-1745 SCREWSCREW
-
9204992049-1595 SEAL, OIL, AC0387E0SEAL, OIL, AC0387E0
-
9205192051-003 SEAL, OIL, TB16267SEAL, OIL, TB16267
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9215192151-1212 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
9215392153-1184 BOLT, M6X20BOLT, M6X20
-
9217192171-1124 CLAMP, DRAIN TUBECLAMP, DRAIN TUBE
