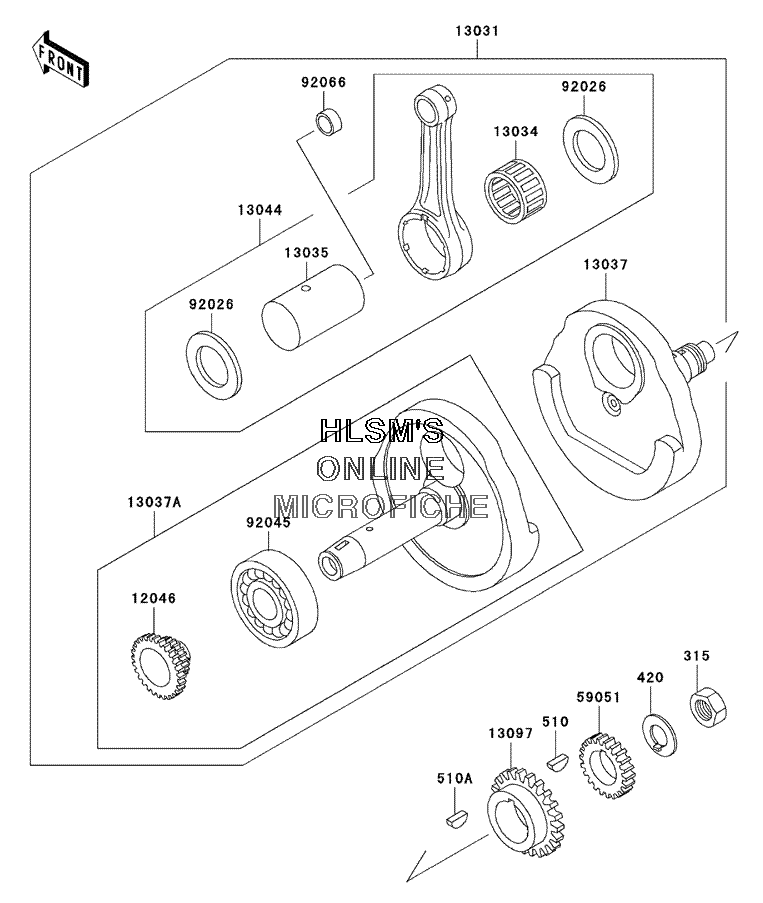

CRANKSHAFT для Kawasaki KLX250D - 2003 года выпуска
-
№АртикулНазвание
-
315315B1600 NUT, HEX, FINE, 16MMNUT, HEX, FINE, 16MM
-
420420B1611 WASHER, CLAW, 16MMWASHER, CLAW, 16MM
-
510510A3100 KEY, WOODRUFFKEY, WOODRUFF
-
510A510A5100 KEY, WOODRUFFKEY, WOODRUFF
-
1204612046-1064 SPROCKET, CAM AND BALANCERSPROCKET, CAM AND BALANCER
-
1303113031-1281 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303413034-1085 BEARING, BIG ENDBEARING, BIG END
-
1303513035-1069 PIN, CRANKPIN, CRANK
-
1303713037-1226 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13037A13037-5040 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
1304413044-5075 SET, CONNECTING RODSET, CONNECTING ROD
-
1309713097-1118 GEAR, PRIMARY SPUR (23 TEETH)GEAR, PRIMARY SPUR (23 TEETH)
-
5905159051-1122 GEAR, SPUR, OIL PUMP (18 TEETH)GEAR, SPUR, OIL PUMP (18 TEETH)
-
9202692026-1348 SPACER, 32.2X51.5X1.2SPACER, 32.2X51.5X1.2
-
9204592045-1172 BEARING, BALLBEARING, BALL
-
9206692066-1249 PLUG, TENSIONERPLUG, TENSIONER
