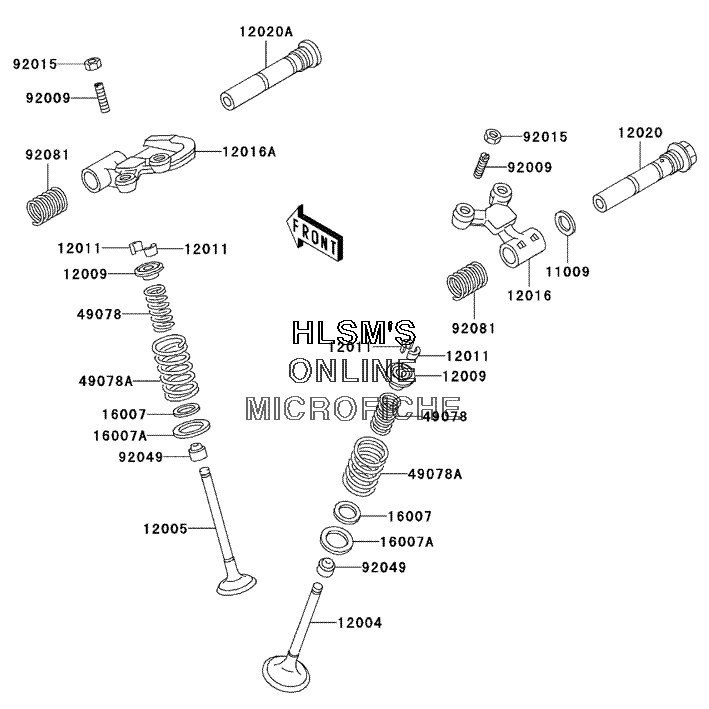

VALVE(S) для Kawasaki KLX250D - 2003 года выпуска
-
№АртикулНазвание
-
1100911009-1430 GASKET, 14X18X1.5GASKET, 14X18X1.5
-
1200412004-1119 VALVE, INTAKEVALVE, INTAKE
-
1200512005-1052 VALVE, EXHAUSTVALVE, EXHAUST
-
1200912009-1054 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1201112011-1003 COLLETCOLLET
-
1201612016-1071 ARM, ROCKER, INTAKEARM, ROCKER, INTAKE
-
12016A12016-1083 ARM, ROCKER, EXHAUSTARM, ROCKER, EXHAUST
-
1202012020-1055 SHAFT, ROCKER, INTAKESHAFT, ROCKER, INTAKE
-
12020A12020-1056 SHAFT, ROCKER, EXHAUSTSHAFT, ROCKER, EXHAUST
-
1600716007-1177 SEAT, SPRING, 12.1X16.2X0.5SEAT, SPRING, 12.1X16.2X0.5
-
16007A16007-1178 SEAT, SPRING, 17.5X23.8X0.5SEAT, SPRING, 17.5X23.8X0.5
-
4907849078-1051 SPRING, ENGINE VALVE, INNERSPRING, ENGINE VALVE, INNER
-
49078A49078-1056 SPRING, ENGINE VALVE, OUTERSPRING, ENGINE VALVE, OUTER
-
9200992009-1279 SCREW, 7MMSCREW, 7MM
-
9201592015-1325 NUT, 7MMNUT, 7MM
-
9204992049-1062 SEAL, OI(LEFT, RIGHT) VC2, 5.5X8.5X8.3SEAL, OI(LEFT, RIGHT) VC2, 5.5X8.5X8.3
-
9208192081-1740 SPRING, ROCKER ARMSPRING, ROCKER ARM
