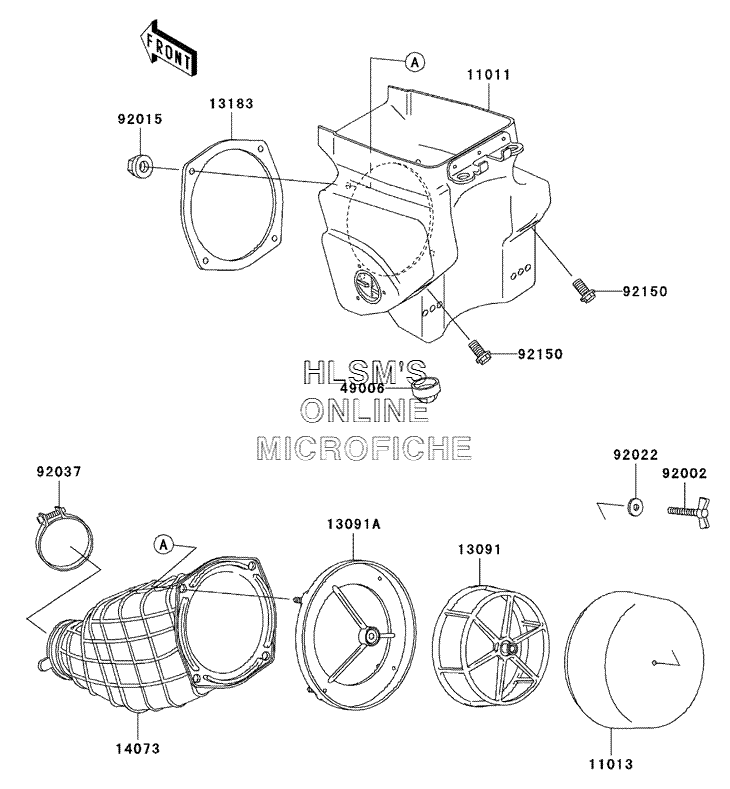

AIR CLEANER для Kawasaki KX 500 - 2003 года выпуска
-
№АртикулНазвание
-
1101111011-1304 CASE, AIR FILTERCASE, AIR FILTER
-
1101311013-1198 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1309113091-1454 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1951 HOLDERHOLDER
-
1318313183-1046 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
1407314073-1360 DUCTDUCT
-
4900649006-1248 BOOTBOOT
-
9200292002-1719 BOLT, WINGBOLT, WING
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9203792037-1409 CLAMP, AIR FILTERCLAMP, AIR FILTER
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
