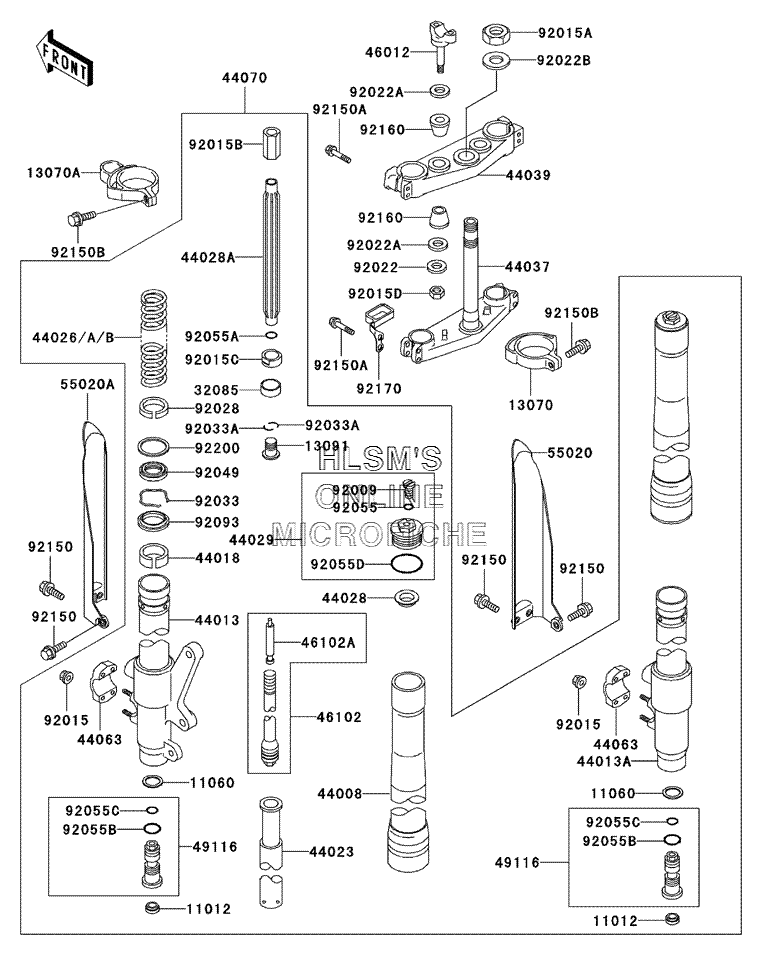

FRONT FORK для Kawasaki KX 500 - 2003 года выпуска
-
№АртикулНазвание
-
1101211012-1692 CAPCAP
-
1106011060-1707 GASKETGASKET
-
1307013070-1290-RZ GUIDE, PROTECTOR (RIGHT) (WHITE)GUIDE, PROTECTOR (RIGHT) (WHITE)
-
13070A13070-1329-RZ GUIDE, PROTECTOR (LEFT) (WHITE)GUIDE, PROTECTOR (LEFT) (WHITE)
-
1309113091-1651 HOLDERHOLDER
-
3208532085-1323 STOPPERSTOPPER
-
4400844008-1037-JS PIPE, FORK OUTER, BRONZEPIPE, FORK OUTER, BRONZE
-
4401344013-1413 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
44013A44013-1414 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
4401844018-1059 PISTON, FORK, INNER PIPEPISTON, FORK, INNER PIPE
-
4402344023-1114 CYLINDER, COMP, FORKCYLINDER, COMP, FORK
-
4402644026-1620 SPRING, FRONT FORK, K=0.40SPRING, FRONT FORK, K=0.40
-
44026A44026-1623 SPRING, FRONT FORK, K=0.39 (OPT)SPRING, FRONT FORK, K=0.39 (OPT)
-
44026B44026-1624 SPRING, FRONT FORK, K=0.41 (OPT)SPRING, FRONT FORK, K=0.41 (OPT)
-
4402844028-1097 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
44028A44028-1100 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
4402944029-1159 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1354 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1295 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4406344063-1060 HOLDER, FRONT AXLEHOLDER, FRONT AXLE
-
4407044070-1551-JS DAMPER, ASSY, FORK, BRONZEDAMPER, ASSY, FORK, BRONZE
-
4601246012-1264 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
4610246102-1401 ROD, FORK, ASSYROD, FORK, ASSY
-
46102A46102-1403 ROD, FORK, INNERROD, FORK, INNER
-
4911649116-1150 VALVE, ASSY, FORKVALVE, ASSY, FORK
-
5502055020-1493-RZ GUARD, FORK (RIGHT) (WHITE)GUARD, FORK (RIGHT) (WHITE)
-
55020A55020-1554-RZ GUARD, FORK (LEFT) (WHITE)GUARD, FORK (LEFT) (WHITE)
-
9200992009-1568 SCREWSCREW
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1653 NUT, STEERING STEM, 22MMNUT, STEERING STEM, 22MM
-
92015B92015-1872 NUTNUT
-
92015C92015-1945 NUTNUT
-
92015D92015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
92022B92022-1873 WASHER, STEERING STEMWASHER, STEERING STEM
-
9202892028-1755 BUSHINGBUSHING
-
9203392033-1264 RING, SNAPRING, SNAP
-
92033A92033-1271 RING, SNAPRING, SNAP
-
9204992049-1440 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9205592055-1441 O-RINGO-RING
-
92055A92055-1442 O-RINGO-RING
-
92055B92055-1547 O-RING, FORK VALVEO-RING, FORK VALVE
-
92055C92055-1548 O-RING, FORK VALVEO-RING, FORK VALVE
-
92055D92055-1549 O-RINGO-RING
-
9209392093-1392 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
92150A92150-1516 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92150B92150-1802 BOLT, 5X16BOLT, 5X16
-
9216092160-1544 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
9217092170-1604 CLAMP, HOSECLAMP, HOSE
-
9220092200-1006 WASHERWASHER
