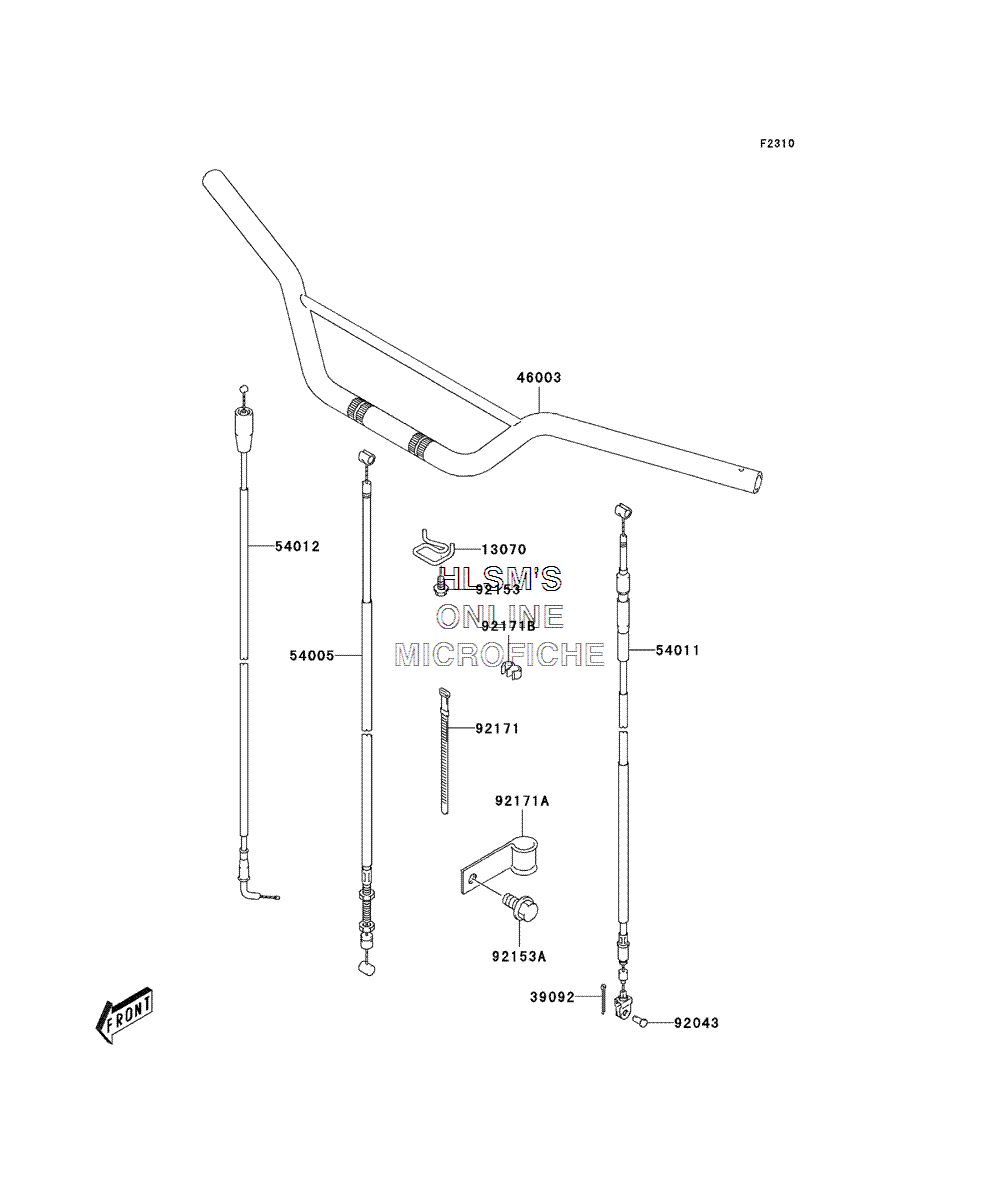

HANDLEBAR для Kawasaki KLX 125 - 2004 года выпуска
-
№АртикулНазвание
-
1307013070-S008 GUIDE, CABLEGUIDE, CABLE
-
3909239092-S004 PIN, HAIR, FRONT FOOTREST COTTERPIN, HAIR, FRONT FOOTREST COTTER
-
4600346003-S003-530 HANDLE (B.SILVER)HANDLE (B.SILVER)
-
5400554005-S003 CABLE, BRAKECABLE, BRAKE
-
5401154011-S001 CABLE, CLUTCHCABLE, CLUTCH
-
5401254012-S004 CABLE, THROTTLECABLE, THROTTLE
-
9204392043-S021 PIN, CLUTCH CABLEPIN, CLUTCH CABLE
-
9215392153-S011 BOLTBOLT
-
92153A92153-S143 BOLTBOLT
-
9217192171-S051 CLAMP, L=90CLAMP, L=90
-
92171A92171-S053 CLAMP, FRONT BRAKE CABLECLAMP, FRONT BRAKE CABLE
-
92171B92171-S065 CLAMPCLAMP
Все узлы модели:
- AIR CLEANER
- BRAKE PEDAL
- CAM CHAIN/TENSIONER
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL - CHASSIS
- ENGINE (OPTIONAL PARTS)
- ENGINE COVER
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRONT FORK
- FRONT HUB
- FUEL FILTER
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GENERATOR
- • HANDLEBAR
- HANDLEBAR LEVER(S)
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- MUFFLER(S)
- OIL PUMP
- REAR HUB
- SEAT
- SIDE COVERS
- STAND(S)
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TRANSMISSION
- UNDER BRACKET
- VALVE(S) W/ CAMSHAFT(S)
