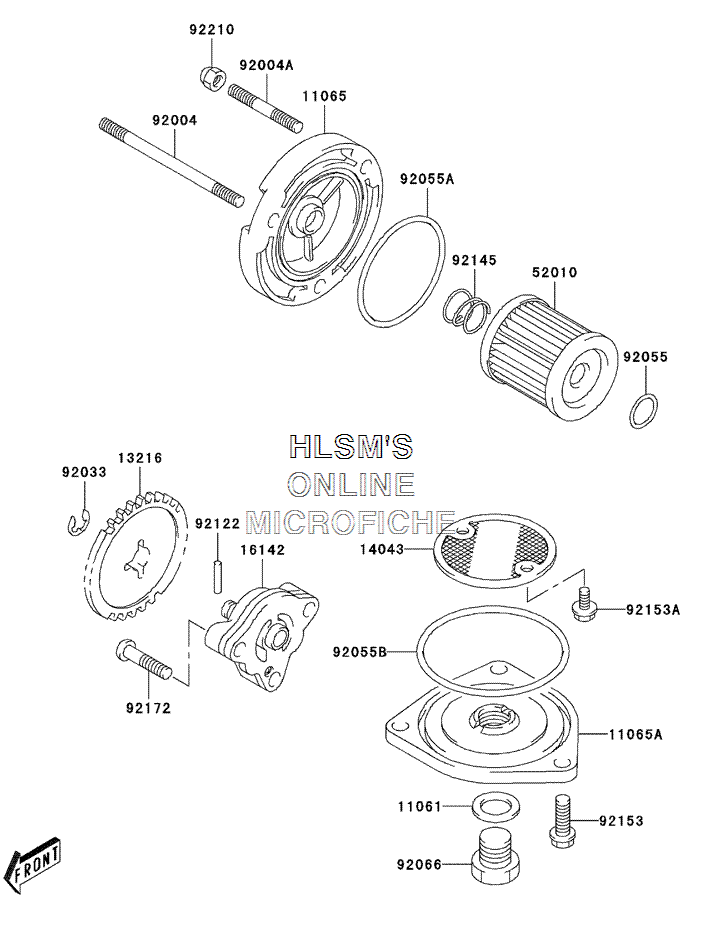

OIL PUMP для Kawasaki KLX 125 - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S006 GASKET, 13.8X18.8X0.4GASKET, 13.8X18.8X0.4
-
1106511065-S015 CAP, OIL FILTERCAP, OIL FILTER
-
11065A11065-S016 CAP, OIL STRAINERCAP, OIL STRAINER
-
1321613216-S004 GEAR, COMP, OIL PUMP DRIVENGEAR, COMP, OIL PUMP DRIVEN
-
1404314043-S002 FILTERFILTER
-
1614216142-S001 COVER, PUMPCOVER, PUMP
-
5201052010-S002 ELEMENT, OIL FILTER, ENGINE OILELEMENT, OIL FILTER, ENGINE OIL
-
9200492004-S006 STUD, L=90STUD, L=90
-
92004A92004-S007 STUDSTUD
-
9203392033-S018 RING, SNAPRING, SNAP
-
9205592055-S005 O-RING, D=1.9O-RING, D=1.9
-
92055A92055-S010 O-RING, D=2.4O-RING, D=2.4
-
92055B92055-S037 O-RING, D=2.4O-RING, D=2.4
-
9206692066-S002 PLUGPLUG
-
9212292122-S004 ROLLERROLLER
-
9214592145-S004 SPO-RINGIL FILTER CAPSPO-RINGIL FILTER CAP
-
9215392153-S002 BOLTBOLT
-
92153A92153-S132 BOLTBOLT
-
9217292172-S090 SCREWSCREW
-
9221092210-S045 NUTNUT
