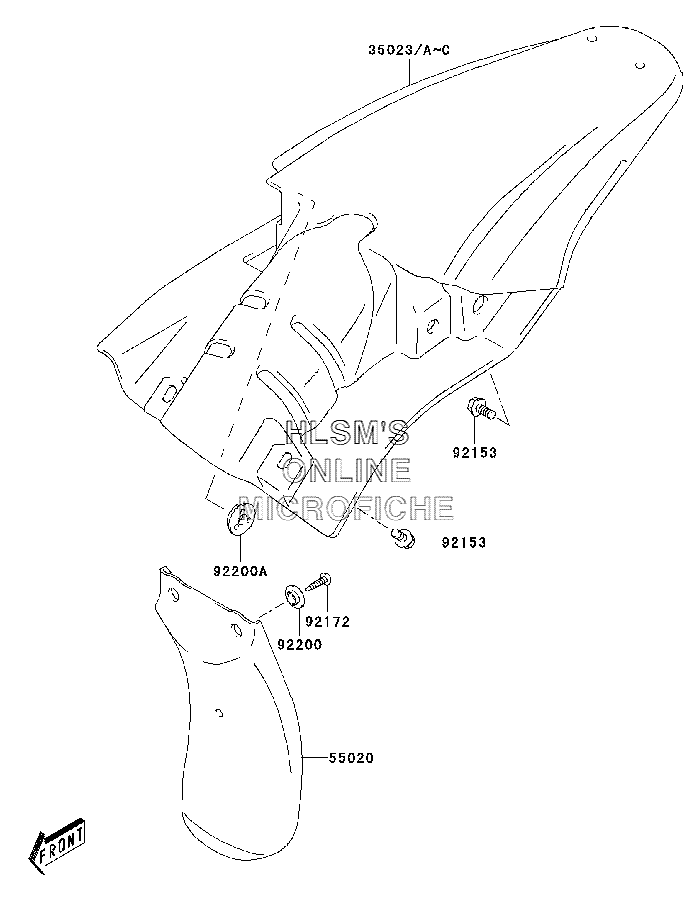

FENDER - REAR для Kawasaki KLX 125L - 2004 года выпуска`
-
№АртикулНазвание
-
3502335023-S003-535 FENDER, REAR (L.GREEN) (US ONLY)FENDER, REAR (L.GREEN) (US ONLY)
-
35023B35023-S004-535 FENDER, REAR (L.GREEN) (CANADA ONLY)FENDER, REAR (L.GREEN) (CANADA ONLY)
-
5502055020-S005 GUARD, REAR FENDER, FRONTGUARD, REAR FENDER, FRONT
-
9215392153-S161 BOLTBOLT
-
9217292172-S031 SCREWSCREW
-
9220092200-S074 WASHERWASHER
-
92200A92200-S075 WASHERWASHER
