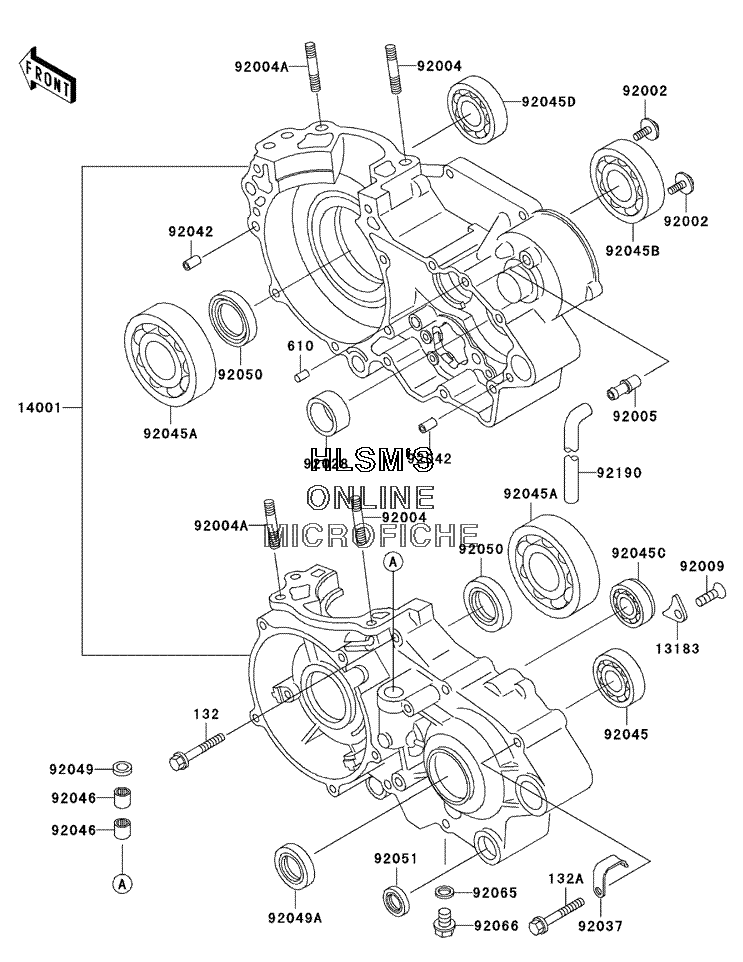

CRANKCASE для Kawasaki KX 500 - 2004 года выпуска
-
№АртикулНазвание
-
132132G0650 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0660 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1318313183-1182 PLATEPLATE
-
1400114001-5258 SET, CRANKCASESET, CRANKCASE
-
9200292002-1659 BOLT, 6X16BOLT, 6X16
-
9200492004-1176 STUD, 10X55STUD, 10X55
-
92004A92004-1223 STUD, 10X47STUD, 10X47
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1563 SCREW, 6X10SCREW, 6X10
-
9202892028-131 BUSHING, 26X35X14BUSHING, 26X35X14
-
9203792037-1318 CLAMP, HARNESSCLAMP, HARNESS
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1011 BEARING, BALL, #6305BEARING, BALL, #6305
-
92045A92045-1027 BEARING, BALL, 6306SH2, 9TCBEARING, BALL, 6306SH2, 9TC
-
92045B92045-1134 BEARING, BALL, 63/22T2C3BEARING, BALL, 63/22T2C3
-
92045C92045-1233 BEARING, BALLBEARING, BALL
-
92045D92045-1305 BEARING, BALL, 608MC3BEARING, BALL, 608MC3
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1159 SEAL, OIL, TC32457SEAL, OIL, TC32457
-
92049A92049-1262 SEAL, OILSEAL, OIL
-
9205092050-057 SEAL, OILSEAL, OIL
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1437 PLUG, DRAINPLUG, DRAIN
-
9219092190-1116 TUBE, 6X9X330TUBE, 6X9X330
