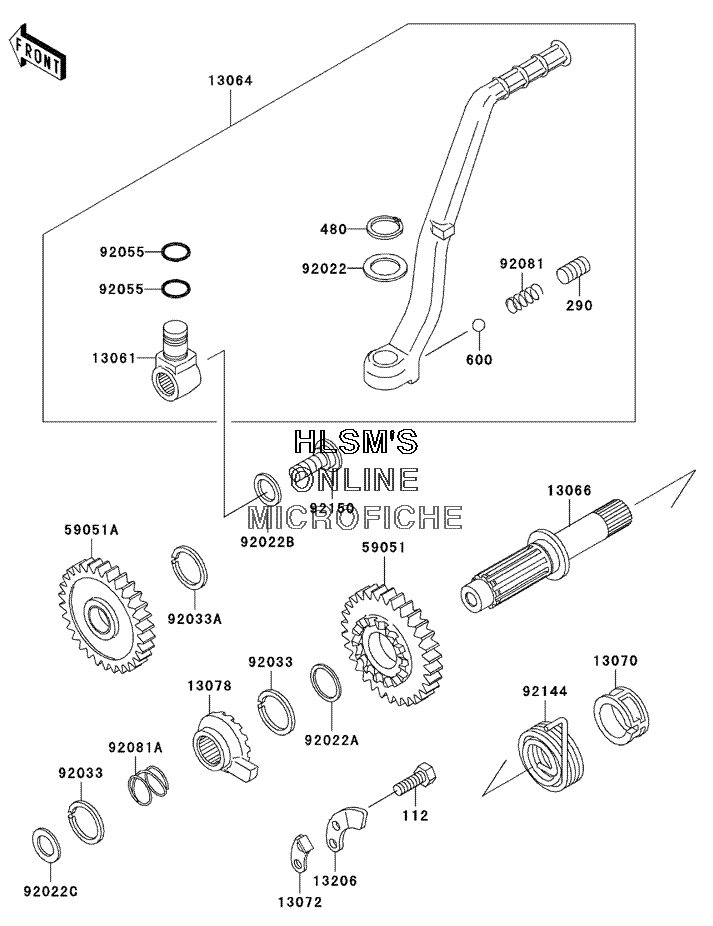

KICKSTARTER MECHANISM для Kawasaki KX 500 - 2004 года выпуска
-
№АртикулНазвание
-
112112G0618 BOLT, UPSETBOLT, UPSET
-
290290P0812 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
480480J1500 CIRCLIP, TYPE, C, 15MMCIRCLIP, TYPE, C, 15MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1306113061-1408 BOSS, KICK PEDALBOSS, KICK PEDAL
-
1306413064-1201 LEVER, ASSY., KICK, PEDALLEVER, ASSY., KICK, PEDAL
-
1306613066-1056 SHAFT, KICKSHAFT, KICK
-
1307013070-011 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307213072-014 STOPPER, KICKSTARTERSTOPPER, KICKSTARTER
-
1307813078-007 RATCHETRATCHET
-
1320613206-1003 GUIDE, KICKGUIDE, KICK
-
5905159051-1149 GEAR, SPUR, KICKSTARTER (26 TEETH)GEAR, SPUR, KICKSTARTER (26 TEETH)
-
59051A59051-1150 GEAR, SPUR, IDLE (26 TEETH)GEAR, SPUR, IDLE (26 TEETH)
-
9202292022-1205 WASHER, 16.3X24X1WASHER, 16.3X24X1
-
92022A92022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022B92022-1944 WASHERWASHER
-
92022C92022-252 WASHER, 20.5X25.5X0.5WASHER, 20.5X25.5X0.5
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033A92033-029 RING, SNAP, 18MMRING, SNAP, 18MM
-
9205592055-061 O-RING, 10X1.5O-RING, 10X1.5
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-097 SPRINGSPRING
-
9214492144-1115 SPRING, KICKSTARTERSPRING, KICKSTARTER
-
9215092150-1800 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
