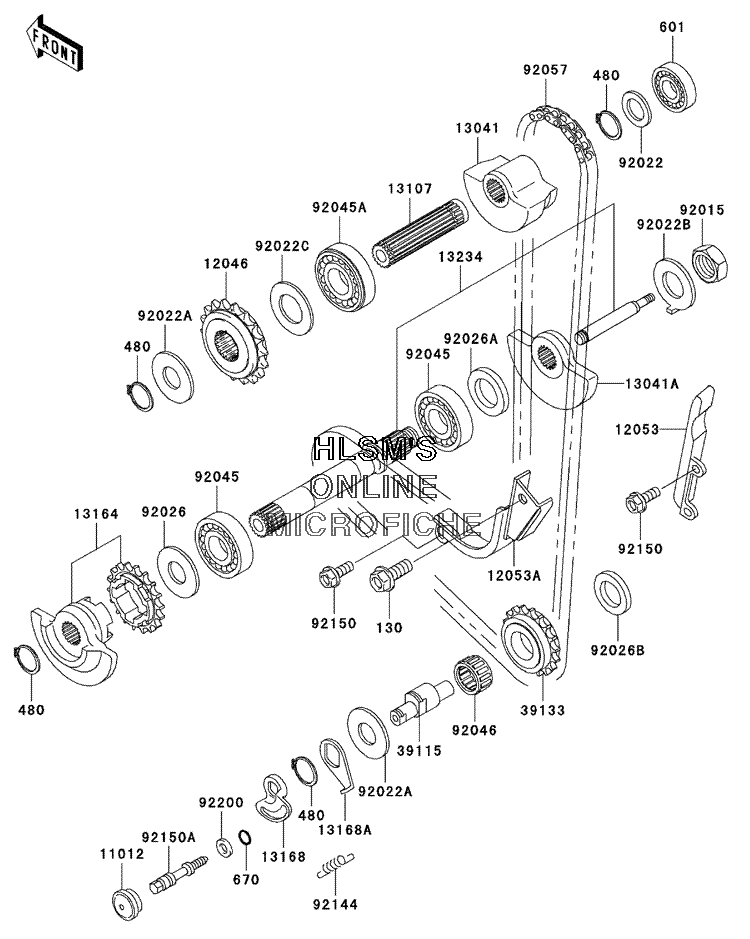

BALANCER SHAFT для Kawasaki KLR650 - 2005 года выпуска
-
№АртикулНазвание
-
130130G0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
480480J2000 CIRCLIP, TYPE, C, 20MMCIRCLIP, TYPE, C, 20MM
-
601601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
670670B1507 O-RING, 7MMO-RING, 7MM
-
1101211012-1369 CAPCAP
-
1204612046-1165 SPROCKET, BALANCER (18 TEETH)SPROCKET, BALANCER (18 TEETH)
-
1205312053-1111 GUIDE, CHAIN, REARGUIDE, CHAIN, REAR
-
12053A12053-1175 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
1304113041-1053 BALANCER, REARBALANCER, REAR
-
13041A13041-1060 BALANCER, FRONT (RIGHT)BALANCER, FRONT (RIGHT)
-
1310713107-1104 SHAFT, BALANCER, REARSHAFT, BALANCER, REAR
-
1316413164-1007 BALANCER, COMP, FRONT (LEFT)BALANCER, COMP, FRONT (LEFT)
-
1316813168-0046 LEVER, IDLER SHAFTLEVER, IDLER SHAFT
-
13168A13168-1238 LEVERLEVER
-
1323413234-1058 SHAFT, COMP, BALANCER, FRONTSHAFT, COMP, BALANCER, FRONT
-
3911539115-1077 SHAFT, IDLERSHAFT, IDLER
-
3913339133-1060 SPROCKET, IDLER, IDLERSPROCKET, IDLER, IDLER
-
9201592015-1477 NUT, 16MMNUT, 16MM
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022A92022-1489 WASHER, 20.3X36X1.5WASHER, 20.3X36X1.5
-
92022B92022-1651 WASHERWASHER
-
92022C92022-1880 WASHER, 20.2X36X2WASHER, 20.2X36X2
-
9202692026-1208 SPACER, 20.2X36X3SPACER, 20.2X36X3
-
92026A92026-1245 SPACER, 20.2X30X5SPACER, 20.2X30X5
-
92026B92026-1462 SPACERSPACER
-
9204592045-1032 BEARING, BALL, #6204BEARING, BALL, #6204
-
92045A92045-1188 BEARING, BALL, SX0415BEARING, BALL, SX0415
-
9204692046-1234 BEARING, NEEDLEBEARING, NEEDLE
-
9205792057-1158 CHAIN, BALANCER, BF06HX70LCHAIN, BALANCER, BF06HX70L
-
9214492144-1860 SPRING, IDLER SHAFTSPRING, IDLER SHAFT
-
9215092150-1394 BOLT, 6X16BOLT, 6X16
-
92150A92150-1923 BOLT, IDLER LEVERBOLT, IDLER LEVER
-
9220092200-1263 WASHER, 6.5X12X2.0WASHER, 6.5X12X2.0
