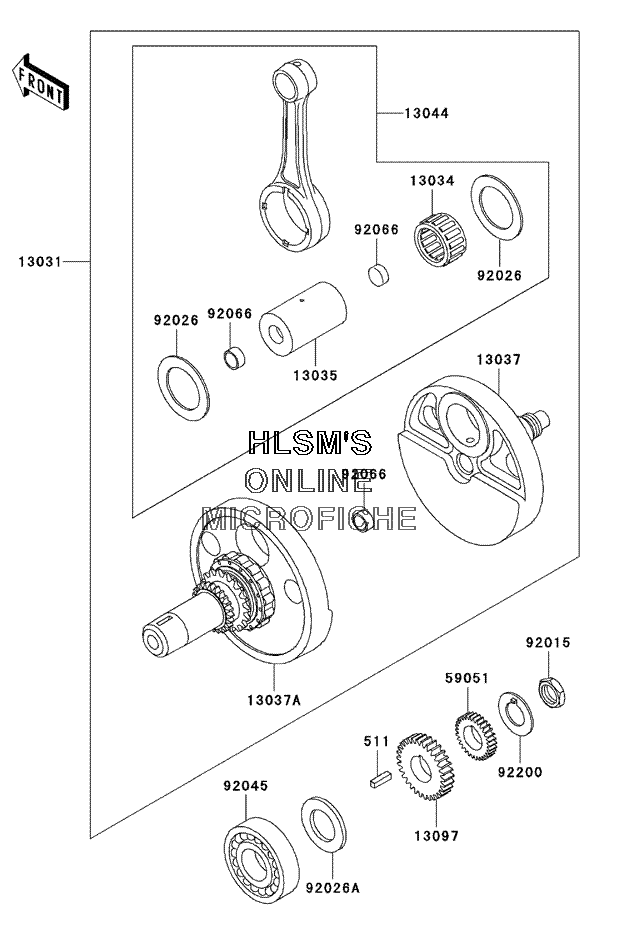

CRANKSHAFT для Kawasaki KLR650 - 2005 года выпуска
-
№АртикулНазвание
-
511511A0520 KEY, SUNKKEY, SUNK
-
1303113031-1396 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303413034-1084 BEARING, BIG ENDBEARING, BIG END
-
1303513035-1066 PIN, CRANKPIN, CRANK
-
1303713037-1516 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13037A13037-5088 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
1304413044-5073 SET, CONNECTING RODSET, CONNECTING ROD
-
1309713097-1333 GEAR, PRIMARY SPUR (33 TEETH)GEAR, PRIMARY SPUR (33 TEETH)
-
5905159051-1145 GEAR, SPUR (27 TEETH)GEAR, SPUR (27 TEETH)
-
9201592015-1890 NUT, 22MMNUT, 22MM
-
9202692026-1279 SPACER, 40X60X1.5SPACER, 40X60X1.5
-
92026A92026-1280 SPACER, 30X50X4SPACER, 30X50X4
-
9204592045-1187 BEARING, BALL, TM, SX08A50C3BEARING, BALL, TM, SX08A50C3
-
9206692066-1154 PLUGPLUG
-
9220092200-1157 WASHER, CLAWWASHER, CLAW
