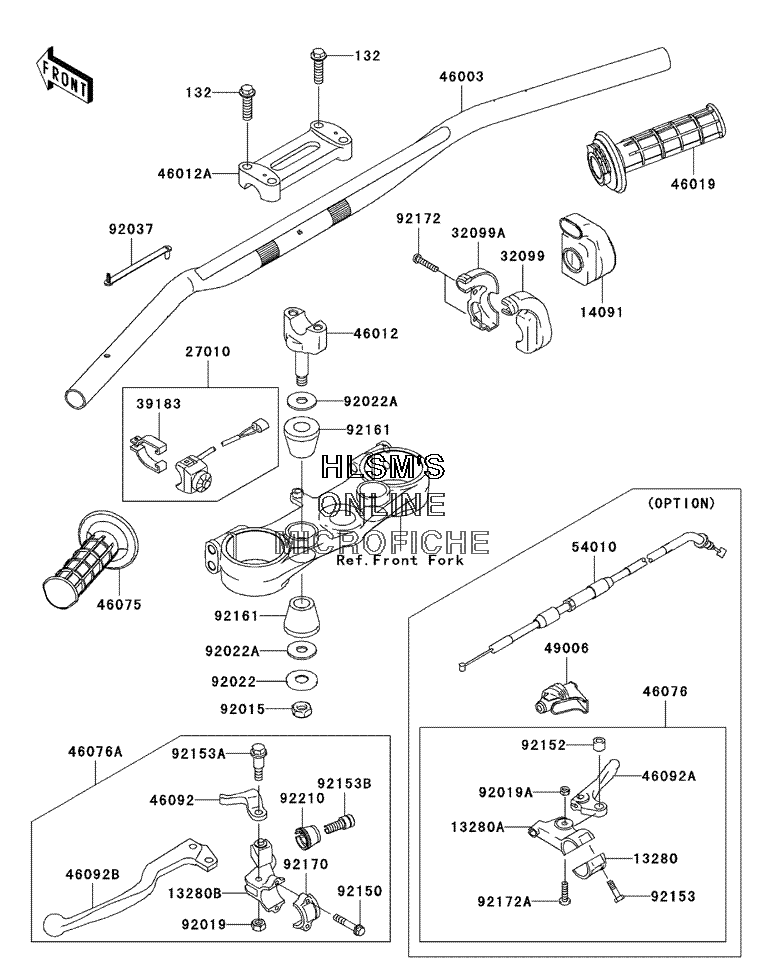

HANDLEBAR для Kawasaki KX 250F - 2005 года выпуска
-
№АртикулНазвание
-
1328013280-0055 HOLDER (OPT)HOLDER (OPT)
-
13280A13280-0056 HOLDER (OPT)HOLDER (OPT)
-
13280B13280-0097 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1409114091-0182 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
2701027010-0022 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
3209932099-0002 CASE, THROTTLE, REARCASE, THROTTLE, REAR
-
32099A32099-0003 CASE, THROTTLE, FRONTCASE, THROTTLE, FRONT
-
3918339183-1059 BAND, ASSY, ENGINE STOP SWITCHBAND, ASSY, ENGINE STOP SWITCH
-
4600346003-0065-458 HANDLE (P.SILVER)HANDLE (P.SILVER)
-
4601246012-0013-458 HOLDER, HANDLE, LOWER (P.SILVER)HOLDER, HANDLE, LOWER (P.SILVER)
-
46012A46012-0017-458 HOLDER, HANDLE, UPPER (P.SILVER)HOLDER, HANDLE, UPPER (P.SILVER)
-
4601946019-0005 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4607546075-1213 GRIP (LEFT)GRIP (LEFT)
-
4607646076-0009 LEVER, ASSY, GRIP, MANUAL DECOMP (OPT)LEVER, ASSY, GRIP, MANUAL DECOMP (OPT)
-
46076A46076-0016 LEVER, ASSY, GRIP, CLUTCH AND STARTERLEVER, ASSY, GRIP, CLUTCH AND STARTER
-
4609246092-0001 LEVER, GRIP, STARTERLEVER, GRIP, STARTER
-
46092A46092-0004 LEVER, GRIP (OPT)LEVER, GRIP (OPT)
-
46092B46092-0007 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
4900649006-0011 BOOT (OPT)BOOT (OPT)
-
5401054010-0019 CABLE, MANUAL DECOMP (OPT)CABLE, MANUAL DECOMP (OPT)
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92019A92019-014 NUT, LOCK, 5MM (OPT)NUT, LOCK, 5MM (OPT)
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
9215092150-1474 BOLTBOLT
-
9215292152-0135 COLLAR (OPT)COLLAR (OPT)
-
9215392153-0617 BOLT, 5X16 (OPT)BOLT, 5X16 (OPT)
-
92153A92153-0772 BOLT, 6MMBOLT, 6MM
-
92153B92153-0773 BOLT, BOLT ADJUSTINGBOLT, BOLT ADJUSTING
-
9216192161-0113 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
132132G0830 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
9217092170-1226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
9217292172-0069 SCREW, 5X20SCREW, 5X20
-
92172A92172-0125 SCREW, 5X20 (OPT)SCREW, 5X20 (OPT)
-
9221092210-0167 NUT, BOLT WIRE ADJUSTINGNUT, BOLT WIRE ADJUSTING
