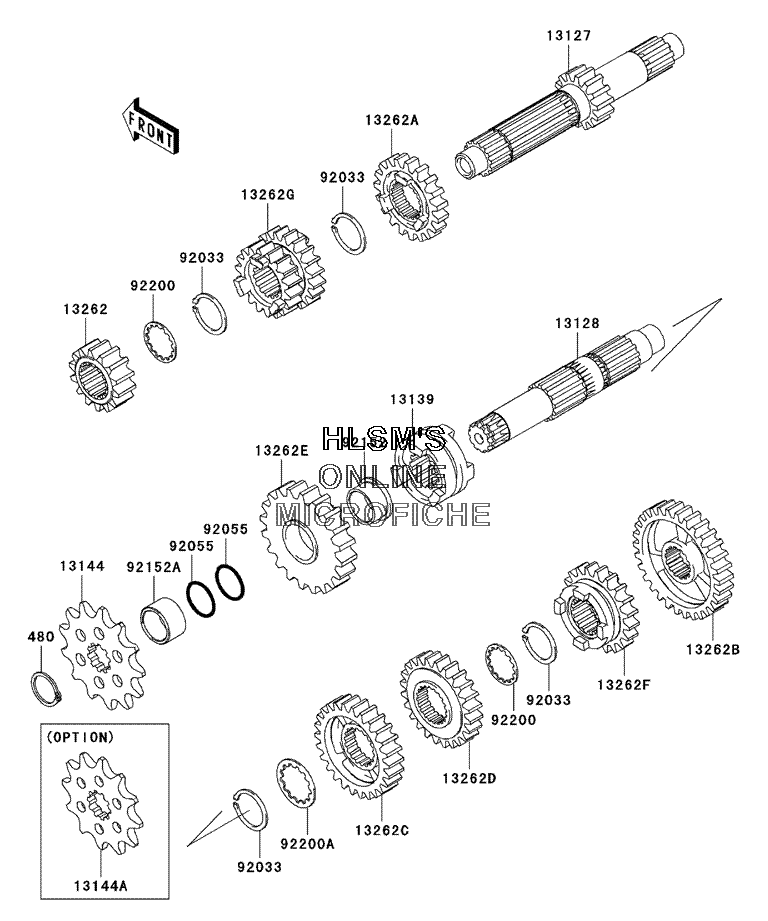

TRANSMISSION для Kawasaki KX 250F - 2005 года выпуска
-
№АртикулНазвание
-
480480J2000 CIRCLIP, TYPE, C, 20MMCIRCLIP, TYPE, C, 20MM
-
1312713127-0004 SHAFT, TRANSMISSION INPUT (14 TEETH)SHAFT, TRANSMISSION INPUT (14 TEETH)
-
1312813128-0009 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1313913139-0006 SHIFTER, 2ND, 3RDSHIFTER, 2ND, 3RD
-
1314413144-0001 SPROCKET, OUTPUT (13 TEETH)SPROCKET, OUTPUT (13 TEETH)
-
13144A13144-0006 SPROCKET, OUTPUT (12 TEETH) (OPT)SPROCKET, OUTPUT (12 TEETH) (OPT)
-
1326213262-0018 GEAR, INPUT 2ND (14 TEETH)GEAR, INPUT 2ND (14 TEETH)
-
13262A13262-0020 GEAR, INPUT 5TH (19 TEETH)GEAR, INPUT 5TH (19 TEETH)
-
13262B13262-0022 GEAR, OUTPUT LOW (30 TEETH)GEAR, OUTPUT LOW (30 TEETH)
-
13262C13262-0024 GEAR, OUTPUT 3RD (26 TEETH)GEAR, OUTPUT 3RD (26 TEETH)
-
13262D13262-0115 GEAR, OUTPUT 4TH (24 TEETH)GEAR, OUTPUT 4TH (24 TEETH)
-
13262E13262-0120 GEAR, OUTPUT 2ND (25 TEETH)GEAR, OUTPUT 2ND (25 TEETH)
-
13262F13262-0184 GEAR, OUTPUT 5TH (20 TEETH)GEAR, OUTPUT 5TH (20 TEETH)
-
13262G13262-0220 GEAR, INPUT 3RD AND 4TH (18/20 TEETH)GEAR, INPUT 3RD AND 4TH (18/20 TEETH)
-
9203392033-1270 RING, SNAPRING, SNAP
-
9205592055-055 O-RING, 19.5X1.5O-RING, 19.5X1.5
-
9215292152-0032 COLLAR, OUTPUT 2NDCOLLAR, OUTPUT 2ND
-
92152A92152-0033 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-0028 WASHER, 24X28.6X1WASHER, 24X28.6X1
-
92200A92200-0064 WASHER, 25X30.1X1WASHER, 25X30.1X1
