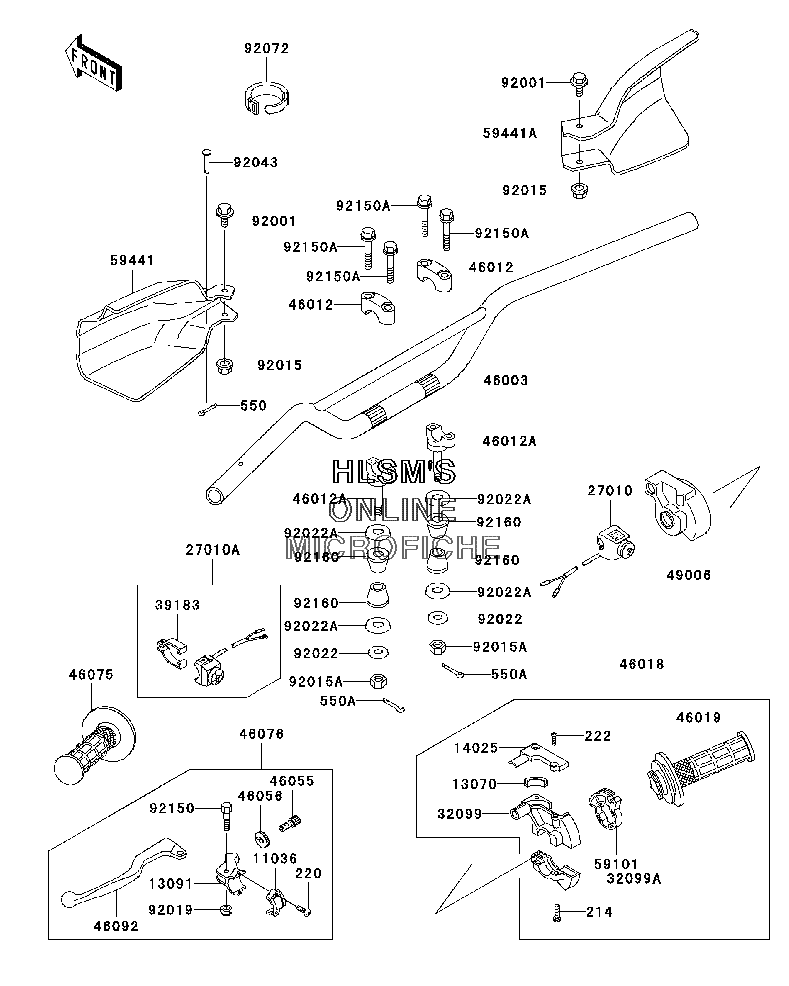

HANDLEBAR для Kawasaki KDX 200 - 2006 года выпуска
-
№АртикулНазвание
-
214214C0518 SCREW, PAN+, 5X18SCREW, PAN+, 5X18
-
220220F0514 SCREW, PAN, CROSS, 5X14SCREW, PAN, CROSS, 5X14
-
222222E0412 SCREW, CSK, RD, CROS, 4X12SCREW, CSK, RD, CROS, 4X12
-
550550D1210 PIN, COTTER, 1.2X10PIN, COTTER, 1.2X10
-
550A550D2020 PIN, COTTER, 2.0X20PIN, COTTER, 2.0X20
-
1103611036-1297 BRACKET, A, LEVER HOLDERBRACKET, A, LEVER HOLDER
-
1307013070-1073 GUIDE, THROTTLE PEACEGUIDE, THROTTLE PEACE
-
1309113091-1131 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1402514025-1646 COVER, THROTTLE CASE UPPERCOVER, THROTTLE CASE UPPER
-
2701027010-1279 SWITCH, LIGHTINGSWITCH, LIGHTING
-
27010A27010-1350 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
3209932099-1036 CASE, THROTTLE UPPERCASE, THROTTLE UPPER
-
32099A32099-1044 CASE, THROTTLE LOWERCASE, THROTTLE LOWER
-
3918339183-1059 BAND, ASSY, ENGINE STOP SWITCHBAND, ASSY, ENGINE STOP SWITCH
-
4600346003-1399-458 HANDLE (P.SILVER)HANDLE (P.SILVER)
-
4601246012-0011-458 HOLDER, HANDLE, UPPER (P.SILVER)HOLDER, HANDLE, UPPER (P.SILVER)
-
46012A46012-0015-458 HOLDER, HANDLE, LOWER (P.SILVER)HOLDER, HANDLE, LOWER (P.SILVER)
-
4601846018-1161 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4601946019-1054 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4605546055-009 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-006 NUT, CABLE ADJUSTNUT, CABLE ADJUST
-
4607546075-1024 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1163 LEVER, ASSY, GRIP, CLUTCHLEVER, ASSY, GRIP, CLUTCH
-
4609246092-1110 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
4900649006-1097 BOOT, THROTTLE CASEBOOT, THROTTLE CASE
-
5910159101-1103 REEL, THROTTLEREEL, THROTTLE
-
5944159441-1094-290 COVER, HANDLE (LEFT) (L.GREEN)COVER, HANDLE (LEFT) (L.GREEN)
-
59441A59441-1108-290 COVER, HANDLE (RIGHT) (L.GREEN)COVER, HANDLE (RIGHT) (L.GREEN)
-
9200192001-1034 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9204392043-1434 PIN, 5X27.5PIN, 5X27.5
-
9207292072-1293 BAND, L=140BAND, L=140
-
9215092150-1291 BOLTBOLT
-
92150A92150-1696 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9216092160-1521 DAMPERDAMPER
