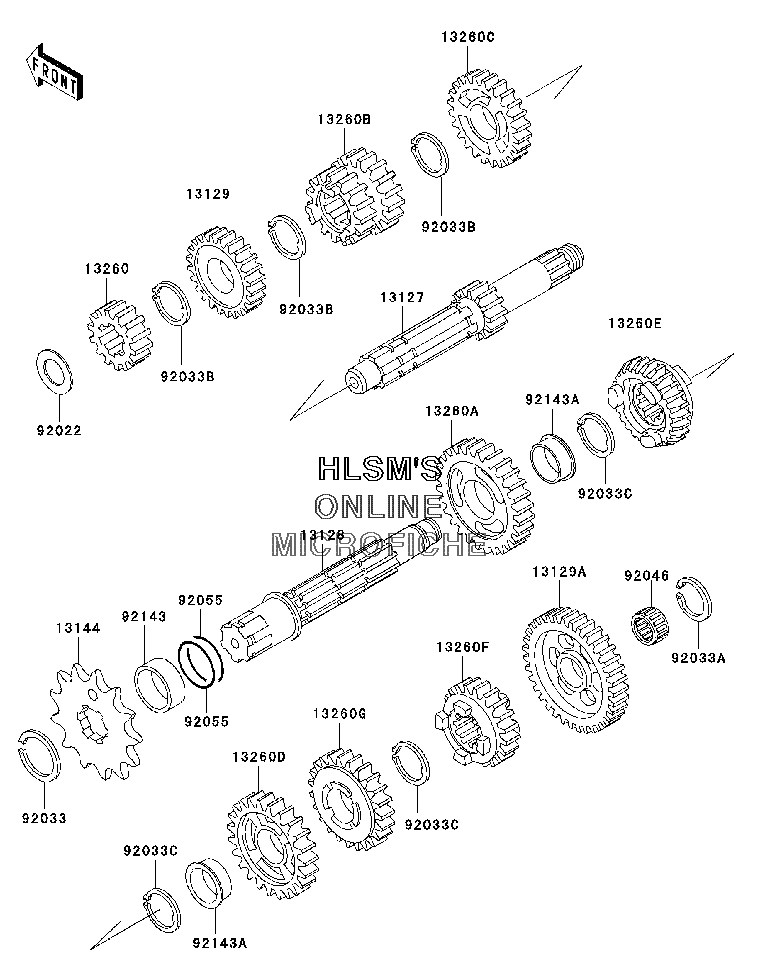

TRANSMISSION для Kawasaki KDX 200 - 2006 года выпуска
-
№АртикулНазвание
-
1312713127-1237 SHAFT, TRANSMISSION INPUT (13 TEETH)SHAFT, TRANSMISSION INPUT (13 TEETH)
-
1312813128-1164 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1753 GEAR, INPUT 5TH (24 TEETH)GEAR, INPUT 5TH (24 TEETH)
-
13129A13129-1755 GEAR, OUTPUT LOW (35 TEETH)GEAR, OUTPUT LOW (35 TEETH)
-
1314413144-1027 SPROCKET, OUTPUT (13 TEETH)SPROCKET, OUTPUT (13 TEETH)
-
1326013260-1003 GEAR, INPUT 2ND (14 TEETH)GEAR, INPUT 2ND (14 TEETH)
-
13260A13260-1004 GEAR, OUTPUT 2ND (28 TEETH)GEAR, OUTPUT 2ND (28 TEETH)
-
13260B13260-1006 GEAR, INPUT 3RD AND 4TH (15/17 TEETH)GEAR, INPUT 3RD AND 4TH (15/17 TEETH)
-
13260C13260-1425 GEAR, INPUT TOP (23 TEETH)GEAR, INPUT TOP (23 TEETH)
-
13260D13260-1426 GEAR, OUTPUT 3RD (23 TEETH)GEAR, OUTPUT 3RD (23 TEETH)
-
13260E13260-1427 GEAR, OUTPUT 5TH (25 TEETH)GEAR, OUTPUT 5TH (25 TEETH)
-
13260F13260-1489 GEAR, OUTPUT TOP (20 TEETH)GEAR, OUTPUT TOP (20 TEETH)
-
13260G13260-1567 GEAR, OUTPUT 4TH (21 TEETH)GEAR, OUTPUT 4TH (21 TEETH)
-
9202292022-170 WASHER, THRUST, 16.5X28X1WASHER, THRUST, 16.5X28X1
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033A92033-032 RING, SNAPRING, SNAP
-
92033B92033-1231 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033C92033-1258 RING, SNAP, 20MMRING, SNAP, 20MM
-
9204692046-1059 BEARING, NEEDLE, K17X23X13.8XBEARING, NEEDLE, K17X23X13.8X
-
9205592055-035 O-RINGO-RING
-
9214392143-1433 COLLARCOLLAR
-
92143A92143-1472 COLLARCOLLAR
