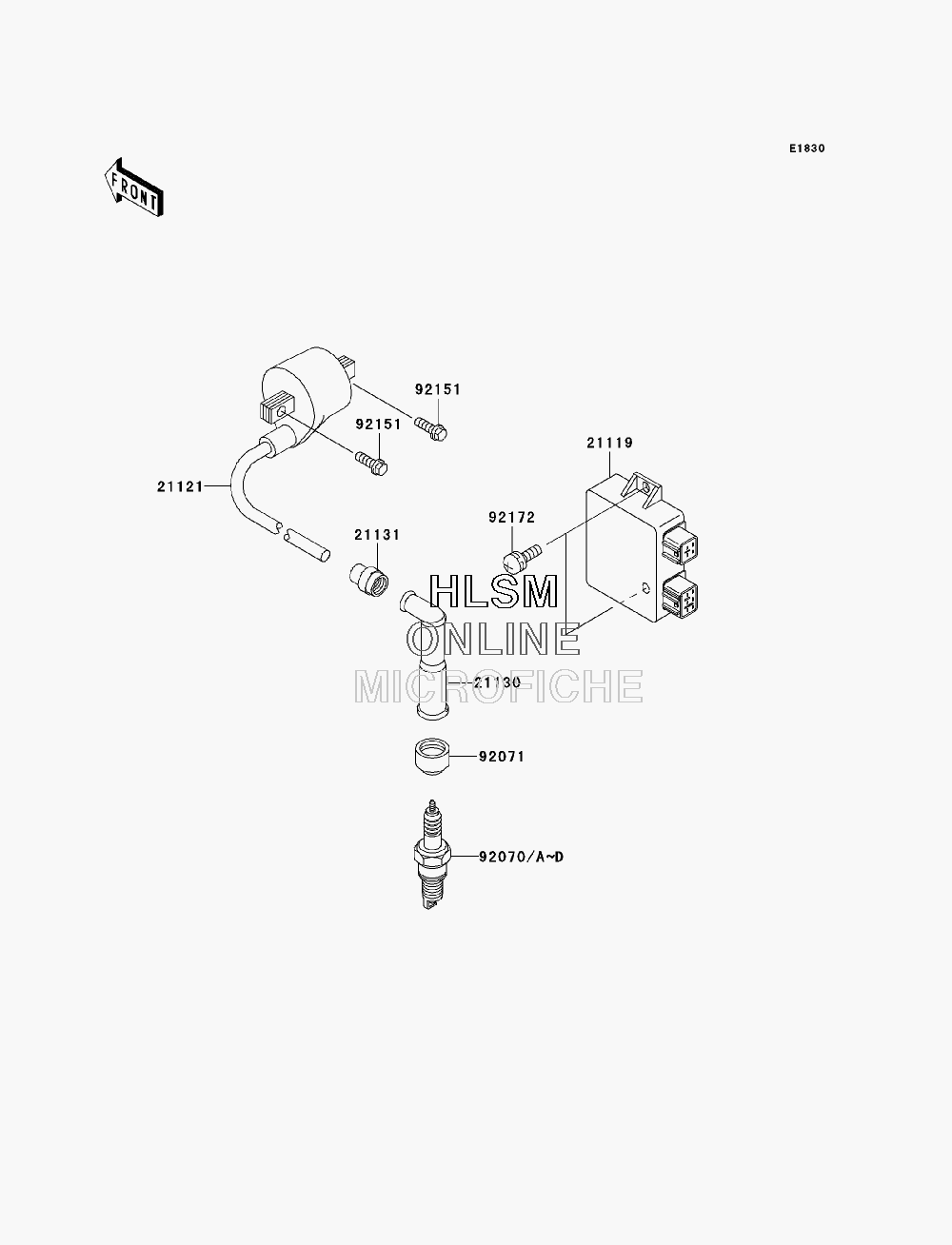

ELECTRICAL SYSTEM для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска
-
№АртикулНазвание
-
2111921119-1579 IGNITERIGNITER
-
2112121121-1230 COIL-IGNITIONCOIL-IGNITION
-
2113021130-1002 CAP-SPARK PLUGCAP-SPARK PLUG
-
2113121131-005 GROMMET,HIGH TENSIONGROMMET,HIGH TENSION
-
9207092070-0019 PLUG-SPARK,CR8E(NGK)PLUG-SPARK,CR8E(NGK)
-
92070C92070-1209 PLUG-SPARK,CR7E(NGK) (OPTION)PLUG-SPARK,CR7E(NGK) (OPTION)
-
92070D92070-1266 PLUG-SPARK,CR9E(NGK) (OPTION)PLUG-SPARK,CR9E(NGK) (OPTION)
-
9207192071-1124 GROMMET,PLUG CAPGROMMET,PLUG CAP
-
9215192151-1311 BOLT,6X18BOLT,6X18
-
9217292172-0241 SCREW-PAN-WS-CROS,6X10SCREW-PAN-WS-CROS,6X10
