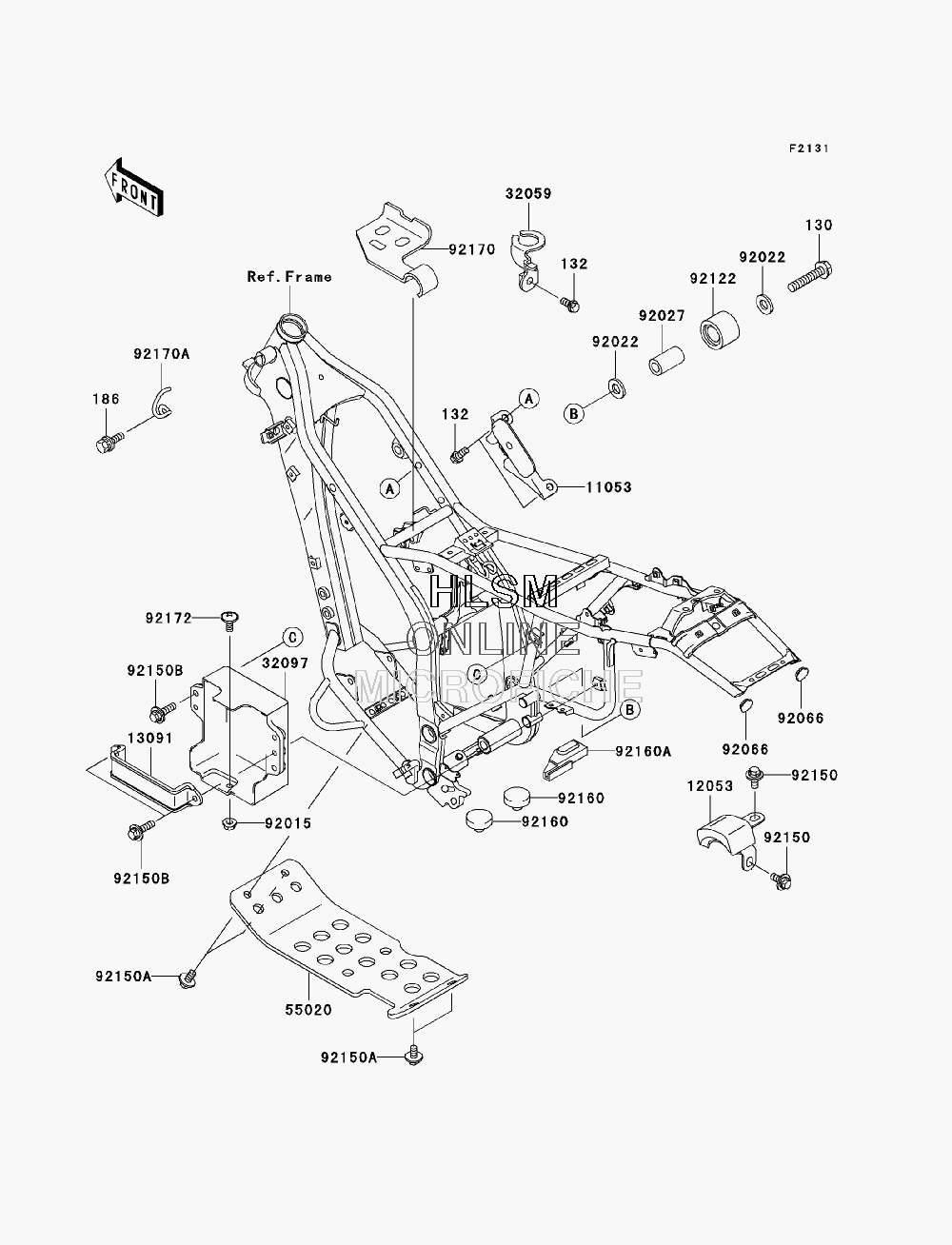

FRAME FITTING(S) для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130G0840 BOLT-FLANGED,8X40BOLT-FLANGED,8X40
-
132132L0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
186186B0620 BOLT-UPSET-WP,6X20BOLT-UPSET-WP,6X20
-
1105311053-1242 BRACKETBRACKET
-
1205312053-0001 GUIDE-CHAINGUIDE-CHAIN
-
1309113091-1875 HOLDERHOLDER
-
3205932059-1117 BRACKET-SWITCH,BRAKEBRACKET-SWITCH,BRAKE
-
3209732097-0001 CASE-BATTERYCASE-BATTERY
-
5502055020-1456 GUARD,ENGINEGUARD,ENGINE
-
9201592015-1078 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202292022-1561 WASHER,8.5X20X1.6WASHER,8.5X20X1.6
-
9202792027-1670 COLLAR,CHAIN ROLLERCOLLAR,CHAIN ROLLER
-
9206692066-1034 PLUG, FRAME END,12X13PLUG, FRAME END,12X13
-
9212292122-1153 ROLLER,CHAIN GUIDEROLLER,CHAIN GUIDE
-
9215092150-1340 BOLT,6X14BOLT,6X14
-
92150A92150-1435 BOLT,6X12BOLT,6X12
-
92150B92150-1481 BOLT,FLANGED,6X22BOLT,FLANGED,6X22
-
9216092160-1396 DAMPERDAMPER
-
92160A92160-1565 DAMPERDAMPER
-
9217092170-1423 CLAMP,HARNESSCLAMP,HARNESS
-
92170A92170-1944 CLAMP,HARNESSCLAMP,HARNESS
-
9217292172-0004 SCREW,6X14SCREW,6X14
